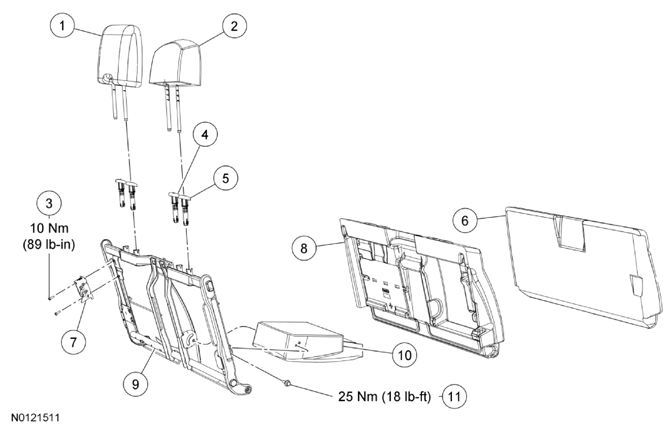

Seat Backrest - 60 Percent
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint |
| 2 | 611A08 | Center head restraint |
| 3 | W701945 | Backrest latch bolt (2 required) |
| 4 | 610A16 | Head restraint guide sleeve, master (2 required) |
| 5 | 610A18 | Head restraint guide sleeve, slave (2 required) |
| 6 | 66601 | Backrest cover |
| 7 | 61383 | Backrest latch |
| 8 | 66801 | Backrest foam pad |
| 9 | 613A39 | Backrest frame |
| 10 | 60508 | Armrest assembly |
| 11 | W714769 | Armrest pivot bolt |
