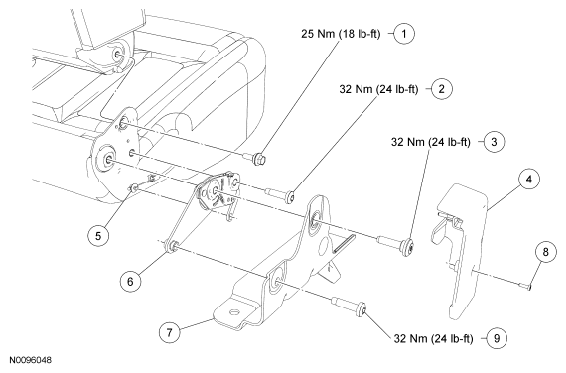

Outboard Cushion Latch - 40 Percent
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W714769 | Backrest pivot bolt |
| 2 | W504777 | Front latch bolt |
| 3 | W713205 | Cushion pivot bolt |
| 4 | 61350 | Outboard side shield |
| 5 | 62418 | Cushion latch release cable |
| 6 | 67412 | Cushion latch |
| 7 | 62526 | Outboard riser |
| 8 | N811172 | Side shield screw |
| 9 | W504777 | Rear latch bolt |
