Inboard Cushion Latch - 40 Percent
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

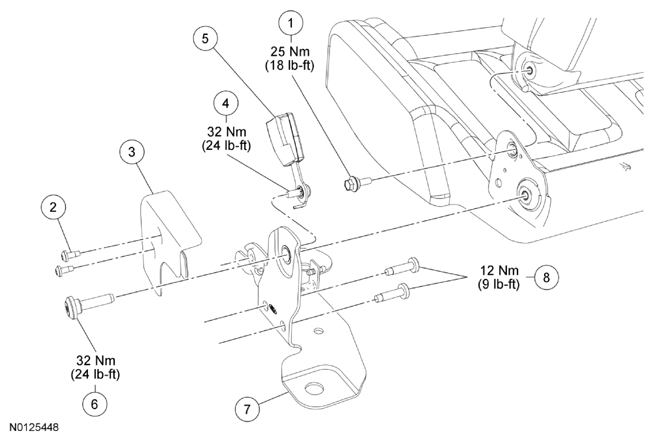

| Item | Part Number | Description |
|---|---|---|
| 1 | W714769 | Backrest pivot bolt |
| 2 | W504752 | Side shield screw (2 required) |
| 3 | 61351 | Inboard side shield |
| 4 | - | Safety belt buckle bolt (part of 60045) |
| 5 | 60045 | Safety belt buckle |
| 6 | W713205 | Cushion pivot bolt |
| 7 | 62527 | Inboard riser |
| 8 | N806910 | Seat connecting bolts (2 required) |
