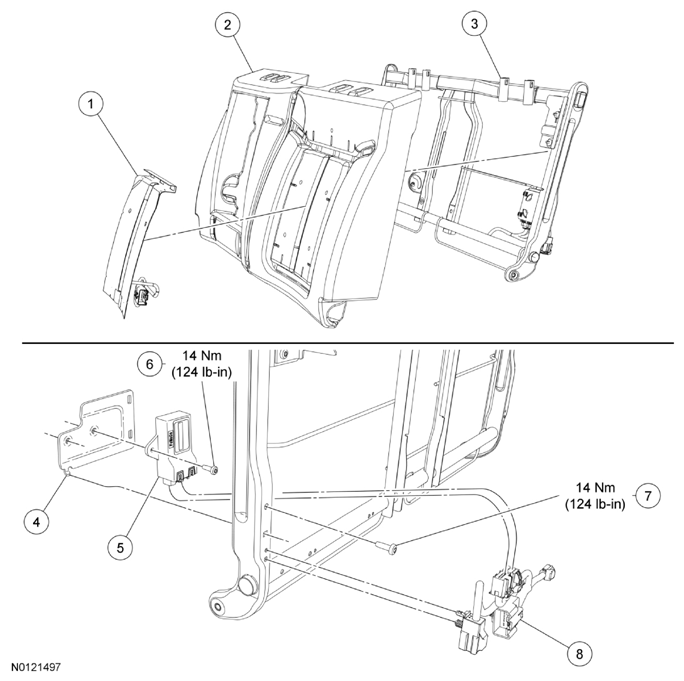

Heated Seat System - 60 Percent Backrest
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
14D696 |
Backrest heater mat |
| 2 |
66801 |
Backrest foam pad |
| 3 |
613A39 |
Backrest frame |
| 4 |
- |
Heated seat module bracket |
| 5 |
14C724 |
Heated seat module |
| 6 |
- |
Heated seat module screw |
| 7 |
- |
Heated seat module bracket screw |
| 8 |
14A699 |
Wire harness |
