Seat Track - Passenger
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

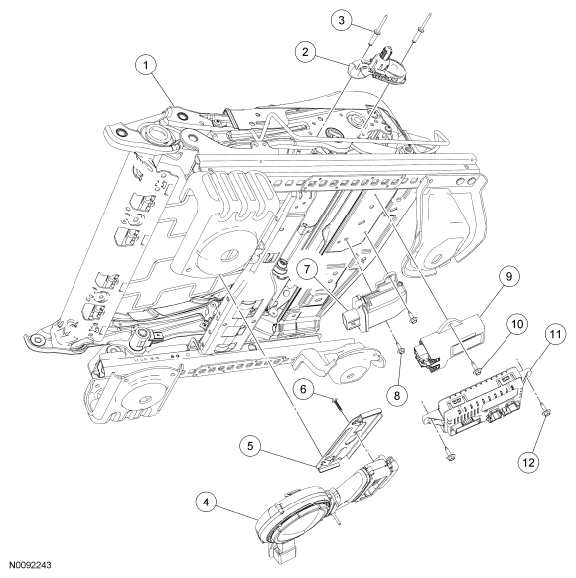

Power seat shown in illustration, manual similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 61710 | Seat track |
| 2 | - | Lumbar adjuster (if equipped) (part of 65500) |
| 3 | - | Lumbar adjuster rivet (2 required) (if equipped) |
| 4 | 19N550 | Cushion Thermo-Electric Device (TED) (if equipped) |
| 5 | - | Cushion TED mounting bracket (if equipped) |
| 6 | - | TED mounting bracket screw (if equipped) |
| 7 | 14B056 | Occupant Classification System Module (OCSM) |
| 8 | - | OCSM screw (2 required) |
| 9 | 14C724 | Heated seat module (if equipped) |
| 10 | - | Heated seat module screw (if equipped) |
| 11 | 14B633 | Dual Climate Controlled Seat Module (DCSM) (if equipped) |
| 12 | - | DCSM screw (2 required) (if equipped) |
- For additional information, refer to the procedures in this information.
