Seat Track - Driver
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

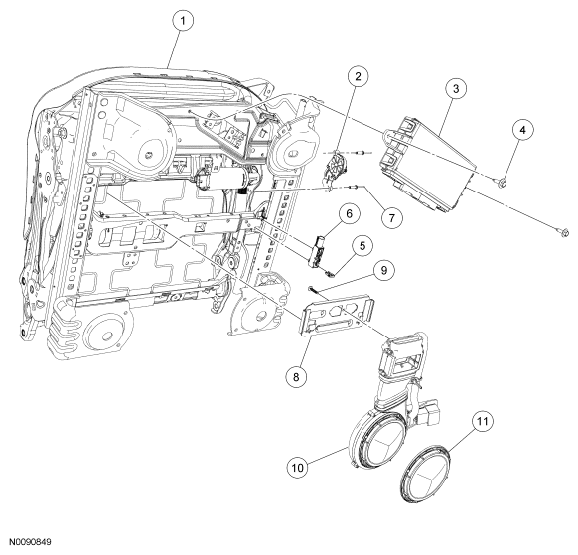

Power seat shown in illustration, manual similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 61711 | Seat track |
| 2 | - | Lumbar adjuster (if equipped) (part of 65500) |
| 3 | 14C708 | Driver Seat Module (DSM) (if equipped) |
| 4 | S505153 | DSM screw (2 required) (if equipped) |
| 5 | - | Seat track position sensor lock tab |
| 6 | 14B416 | Seat track position sensor |
| 7 | - | Lumbar adjuster rivet (2 required) (if equipped) |
| 8 | - | Cushion Thermo-Electric Device (TED) mounting bracket (if equipped) |
| 9 | - | TED mounting bracket screw (if equipped) |
| 10 | 19N550 | Cushion TED (if equipped) |
| 11 | - | Cushion TED filter (if equipped) |
