Seat Side Shield - Power Seat Track With Memory, Power Recline and Power Lumbar, Regular Cab and Crew Cab
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH shown in illustration, RH similar.

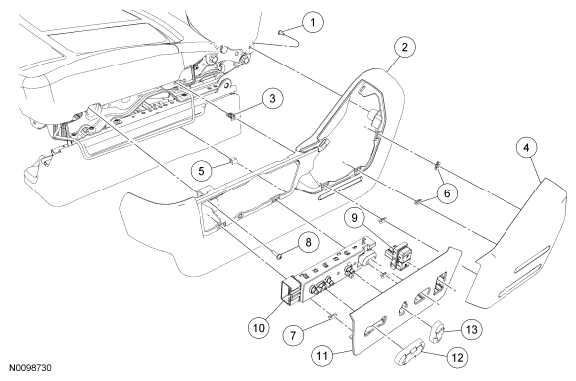

Fig 1: Exploded View Of Seat Side Shield - Power Seat Track With Memory, Power Recline And Power Lumbar, Regular Cab And Crew Cab
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Side shield screw, rear |
| 2 | 62187 | Side shield |
| 3 | W711045 | Side shield retainer |
| 4 | 61693 | Safety belt anchor cover |
| 5 | W713010 | Side shield retainer, Z-clip |
| 6 | W712973 | Safety belt anchor cover retainers (3 required) |
| 7 | W712973 | Side shield insert retainer (2 required) |
| 8 | - | Side shield screw, front |
| 9 | 14776 | Memory SET switch |
| 10 | 14A701 | Seat control switch |
| 11 | 14A706 | Side shield insert |
| 12 | 14711 | Seat control switch knob |
| 13 | - | Recliner switch knob |
