Seat Cushion
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

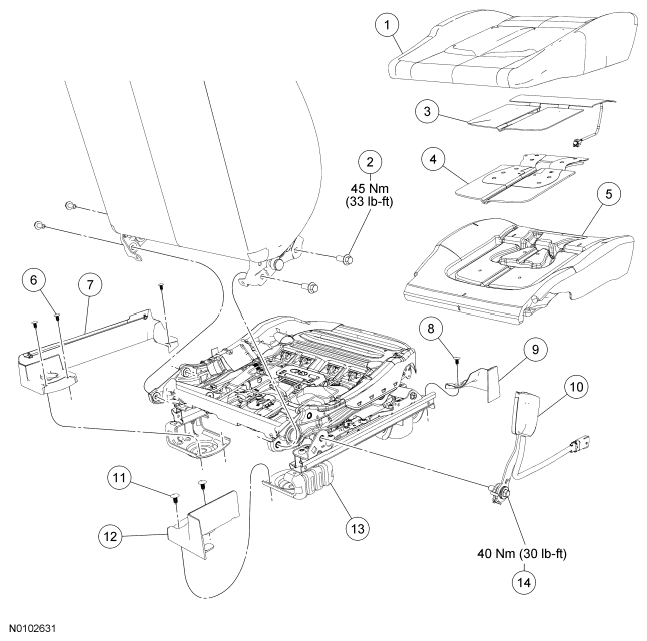

LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Cushion cover |
| 2 | W500433 | Backrest bolt (4 required) |
| 3 | 14D696 | Cushion heater mat |
| 4 | 18D507 | Climate controlled seat cushion manifold (if equipped) |
| 5 | 622A23 | Cushion foam pad |
| 6 | W705589 | Outboard seat track cover retainer (3 required) |
| 7 | 62187 | Outboard seat track cover |
| 8 | W705589 | Front inboard seat track cover retainer |
| 9 | 62186 | Front inboard seat track cover |
| 10 | 61203 | Safety belt buckle |
| 11 | W705589 | Rear inboard seat track cover retainer (2 required) |
| 12 | 62186 | Rear inboard seat track cover |
| 13 | 61711 | Seat track |
| 14 | - | Safety belt buckle bolt (part of 61203) |
