Seat Backrest - Trim Parts
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

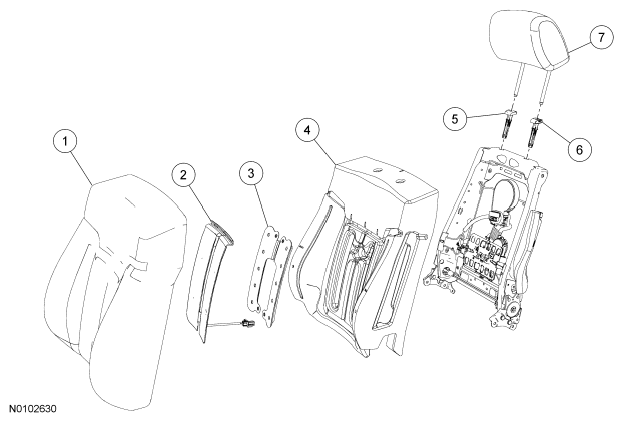

LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 64417 | Backrest cover |
| 2 | 14D696 | Backrest heater mat |
| 3 | 18D507 | Climate controlled seat backrest manifold (if equipped) |
| 4 | 64811 | Backrest foam pad |
| 5 | 610A18 | Head restraint guide sleeve, slave |
| 6 | 610A16 | Head restraint guide sleeve, master |
| 7 | 611A08 | Head restraint |
