Seat Backrest - Frame Parts, Power Seat With Power Lumbar and Climate Controlled Seat System
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH shown in illustration, RH similar.

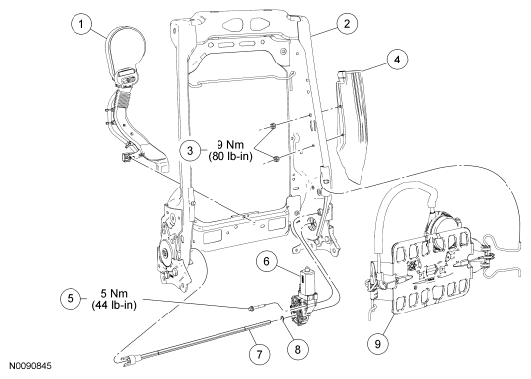

Fig 1: Exploded View Of Seat Backrest - Frame Parts, Power Seat With Power Lumbar And Climate Controlled Seat System With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 19N550 | Backrest Thermo-Electric Device (TED) |
| 2 | 61018 | Backrest frame |
| 3 | W520111 | Side air bag nuts |
| 4 | 611D10 | Side air bag module |
| 5 | W701242 | Recliner motor bolt |
| 6 | 14547 | Recliner motor |
| 7 | 613A68 | Torque shaft |
| 8 | 61479 | Torque shaft retainer |
| 9 | 65500 | Power lumbar assembly |
