Seat Backrest - Frame Parts, Manual Seat Without Adjustable Lumbar
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH shown in illustration, RH similar.

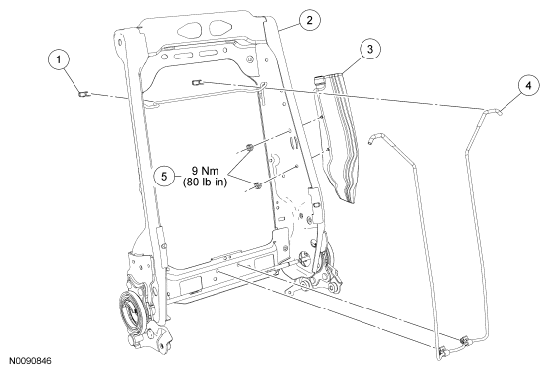

Fig 1: Exploded View Of Seat Backrest - Frame Parts, Manual Seat Without Adjustable Lumbar With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W790133 | Backrest support upper retainer (2 required) |
| 2 | 61018 | Backrest frame |
| 3 | 611D10 | Side air bag module |
| 4 | 64842 | Backrest support |
| 5 | W520111 | Side air bag nuts |
