Seat Cushion

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

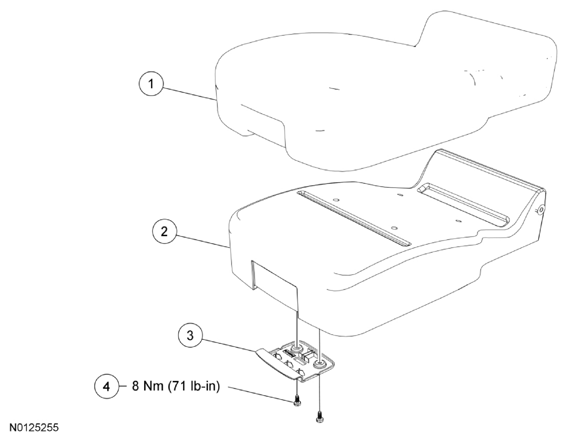

Fig 1: Exploded View Of Seat Cushion With Torque Specifications
G07965568Courtesy of FORD MOTOR CO.
Item Part Number Description
1 62900 Cushion cover
2 632A22 Cushion
3 454A48 Cushion release handle
4 W714751 Cushion release handle screw (2 required)
