Heated Seat Wire Harness View

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the steps at the beginning of this procedure for installation instructions.

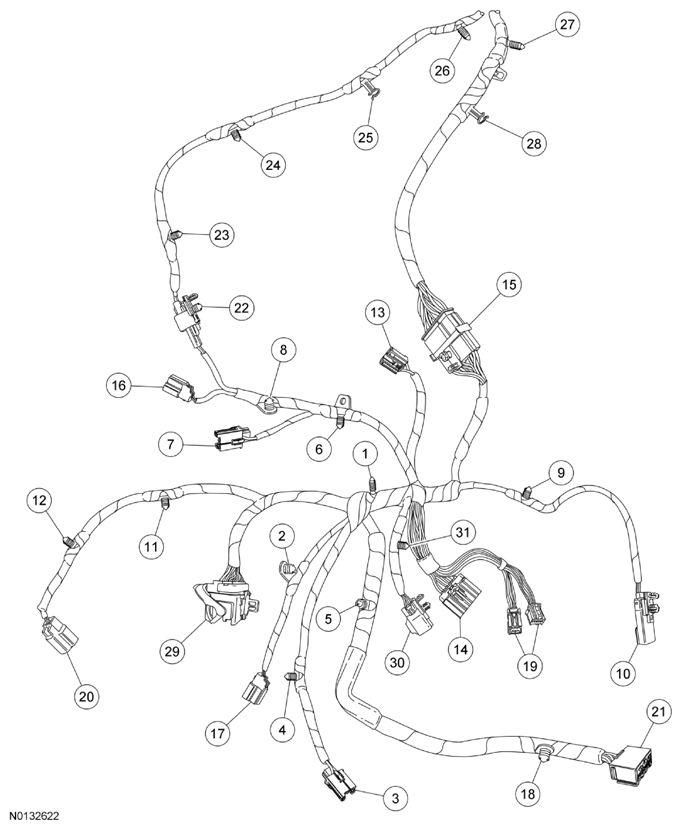

Fig 1: Heated Seat Wire Harness View

Courtesy of FORD MOTOR CO.

Item

Description

Seat wire harness main retainer

Occupant Classification System (OCS) weight sensor bolt D wire harness retainer

3⁽¹⁾

Front height motor electrical connector

4⁽¹⁾

Front height motor wire harness retainer

Seat control switch wire harness retainer

OCS weight sensor bolt C wire harness retainer

7⁽²⁾

Horizontal motor electrical connector

OCS weight sensor bolt C wire harness retainer

Belt Tension Sensor (BTS) wire harness retainer

10⁽³⁾

BTS wire harness electrical connector and retainer

Safety belt buckle wire harness retainer

13⁽⁴⁾

Rear height motor electrical connector

Occupant Classification System Module (OCSM) electrical connector

15⁽⁵⁾

Backrest wire harness electrical connector and retainer

OCS weight sensor bolt C electrical connector

17⁽⁴⁾

OCS weight sensor bolt D electrical connector

Seat control switch wire harness retainer

Heated seat module electrical connectors

20⁽²⁾

Safety belt buckle electrical connector and retainer

21⁽⁶⁾

Seat control switch electrical connector

Side air bag wire harness electrical connector and retainer

Side air bag wire harness retainer

Backrest wire harness retainer

Seat wire harness electrical connector and retainer

30⁽⁴⁾

Cushion heater mat electrical connector and retainer

31⁽⁴⁾

Cushion heater mat wire harness retainer

⁽¹⁾	Refer to WIRE HARNESS RETAINER AND CONNECTOR LOCATION VIEW - FRONT HEIGHT MOTOR .

⁽²⁾	Refer to WIRE HARNESS RETAINER AND CONNECTOR LOCATION VIEW - INBOARD SIDE .

⁽³⁾	Refer to WIRE HARNESS RETAINER AND CONNECTOR LOCATION VIEW - OUTBOARD SIDE .

⁽⁴⁾	Refer to WIRE HARNESS RETAINER AND CONNECTOR LOCATION VIEW - FRONT OF SEAT .

⁽⁵⁾	Electrical connector must be attached to the seat bottom side, as shown in illustration. Refer to COMPLETED WIRE HARNESS INSTALLATION VIEW .

⁽⁶⁾	Electrical connector and wire harness must be routed on the correct side of side shield attachment wire, as shown in illustration. Refer to WIRE HARNESS RETAINER AND CONNECTOR LOCATION VIEW - OUTBOARD SIDE .
