Climate Controlled Seat Wire Harness View

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the steps at the beginning of this procedure for installation instructions.

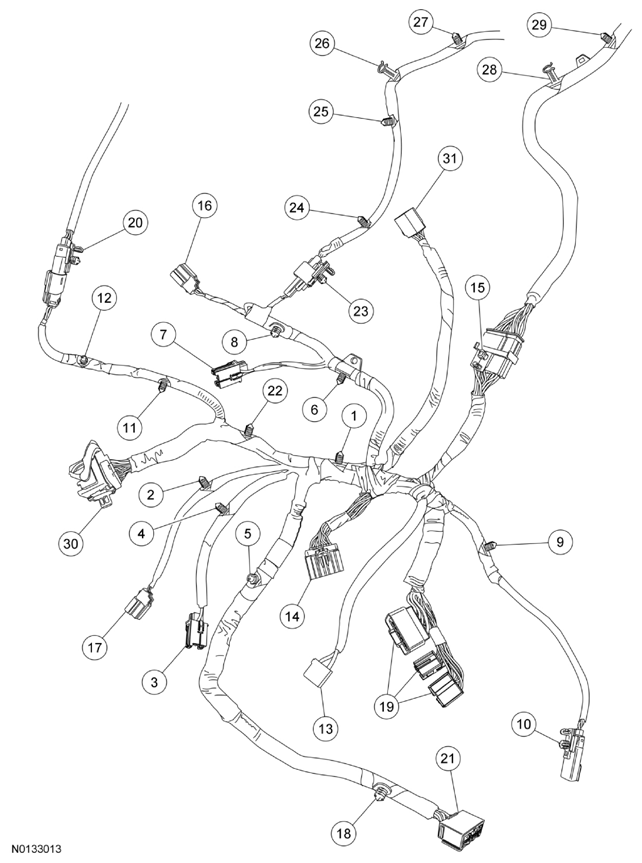

Fig 1: Climate Controlled Seat Wire Harness View

Courtesy of FORD MOTOR CO.

Item

Description

Seat wire harness main retainer

Occupant Classification System (OCS) weight sensor bolt D wire harness retainer

3⁽¹⁾

Front height motor electrical connector

4⁽¹⁾

Front height motor wire harness retainer

Seat control switch wire harness retainer

6⁽²⁾

OCS weight sensor bolt C wire harness retainer

7⁽³⁾

Horizontal motor electrical connector

OCS weight sensor bolt C wire harness retainer

Belt Tension Sensor (BTS) wire harness retainer

10⁽⁴⁾

BTS wire harness electrical connector and retainer

Safety belt buckle wire harness retainer

13⁽⁵⁾

Rear height motor electrical connector

Occupant Classification System Module (OCSM) electrical connector

15⁽⁶⁾

Backrest wire harness electrical connector and retainer

OCS weight sensor bolt C electrical connector

17⁽⁵⁾

OCS weight sensor bolt D electrical connector

Seat control switch wire harness retainer

Dual Climate Controlled Seat Module (DCSM) electrical connectors

20⁽³⁾

Safety belt buckle electrical connector and retainer

21⁽⁷⁾

Seat control switch electrical connector

Wire harness main retainer

Side air bag wire harness electrical connector and retainer

24⁽²⁾

Side air bag wire harness retainer

25⁽²⁾

Side air bag wire harness retainer

Backrest wire harness retainer

Seat wire harness electrical connector and retainer

31⁽⁸⁾

Cushion Thermo-Electric Device (TED) electrical connector

⁽¹⁾	Refer to WIRE HARNESS RETAINER AND CONNECTOR LOCATION VIEW - FRONT HEIGHT MOTOR .

⁽²⁾	Refer to WIRE HARNESS RETAINER AND CONNECTOR LOCATION VIEW - MOTOR BRACKET .

⁽³⁾	Refer to WIRE HARNESS RETAINER AND CONNECTOR LOCATION VIEW - INBOARD SIDE .

⁽⁴⁾	Refer to WIRE HARNESS RETAINER AND CONNECTOR LOCATION VIEW - OUTBOARD SIDE .

⁽⁵⁾	Refer to WIRE HARNESS RETAINER AND CONNECTOR LOCATION VIEW - FRONT OF SEAT .

⁽⁶⁾	Electrical connector must be attached to the seat bottom side, as shown in illustration. Refer to WIRE HARNESS RETAINER AND CONNECTOR LOCATION VIEW - MOTOR BRACKET .

⁽⁷⁾	Electrical connector and wire harness must be routed on the correct side of side shield attachment wire, as shown in illustration. Refer to WIRE HARNESS RETAINER AND CONNECTOR LOCATION VIEW - OUTBOARD SIDE .

⁽⁸⁾	Wire harness must correctly pass over other harnesses, as shown in illustration. Refer to WIRE HARNESS RETAINER AND CONNECTOR LOCATION VIEW - MOTOR BRACKET .
