Wire Harness Retainer and Connector Location View

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Harness is attached to the seat track as it should appear in the vehicle.

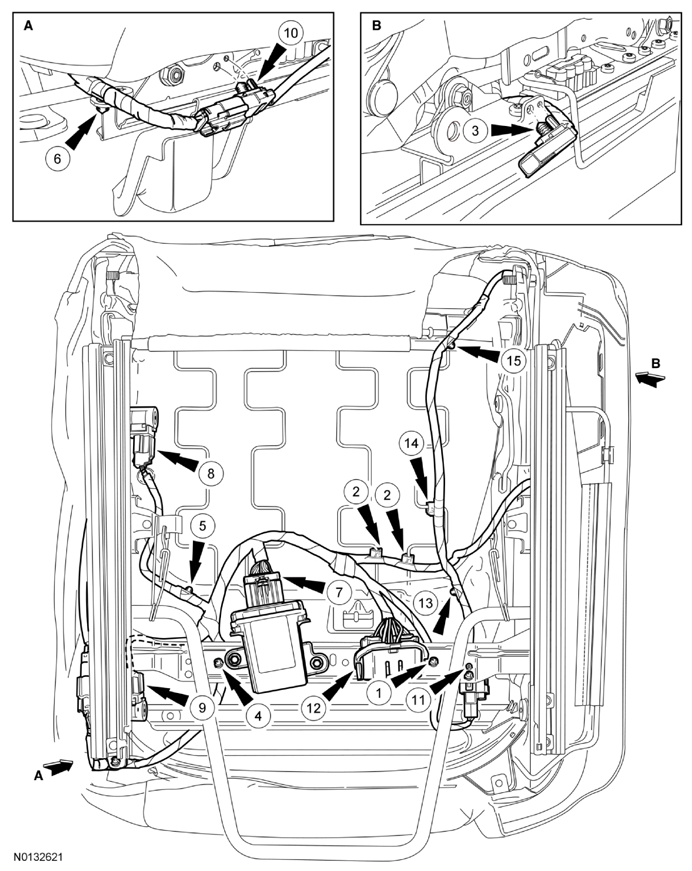

Fig 1: Wire Harness Retainer And Connector Location View
G07965518Courtesy of FORD MOTOR CO.
  1. Compare the seat with Wire Harness Retainer and Connector Location View to verify correct installation.
