Manual Seat Wire Harness View
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to the steps at the beginning of this procedure for installation instructions.
Courtesy of FORD MOTOR CO.

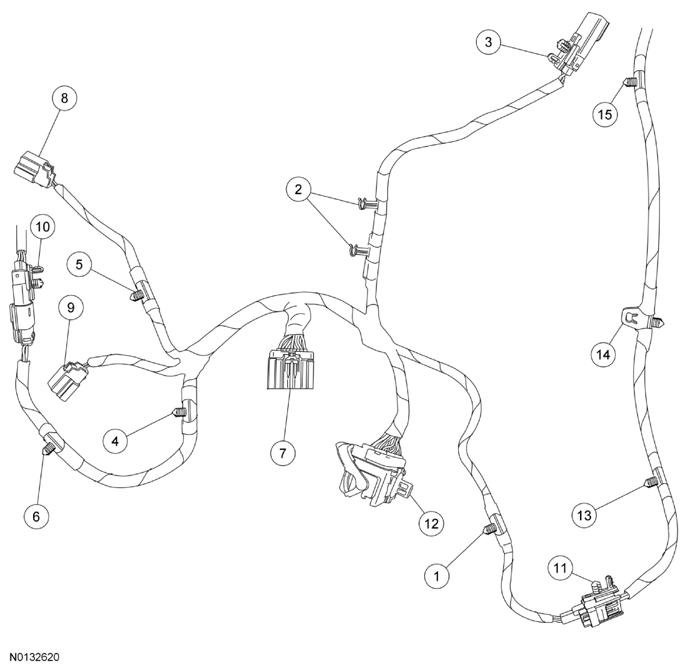

| Item |
Description |
| 1 |
Side air bag wire harness retainer |
| 2 |
Belt Tension Sensor (BTS) wire harness retainers |
| 3 |
BTS wire harness electrical connector and retainer |
| 4 |
Safety belt buckle wire harness retainer |
| 5 |
OCS weight sensor bolt C wire harness retainer |
| 6 |
Safety belt buckle wire harness retainer |
| 7 |
Occupant Classification System Module (OCSM) electrical connector |
| 8 |
OCS weight sensor bolt C electrical connector |
| 9 |
OCS weight sensor bolt D electrical connector |
| 10 |
Safety belt buckle electrical connector and retainer |
| 11 |
Side air bag wire harness electrical connector |
| 12 |
Seat wire harness electrical connector |
| 13 |
Side air bag wire harness retainer |
| 14 |
Side air bag wire harness retainer |
| 15 |
Side air bag wire harness retainer |
