Wheel Speed Sensor Ring - Rear: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

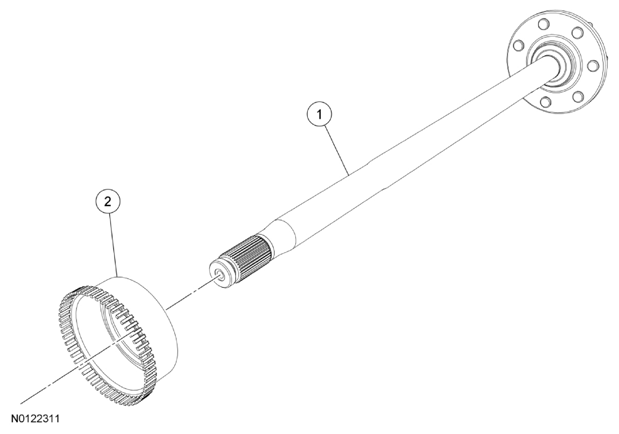

Fig 1: Identifying Axle Shaft And Wheel Speed Sensor Ring
G07958237Courtesy of FORD MOTOR CO.
Item Part Number Description
1 4234 Axle shaft
2 2C189 Wheel speed sensor ring
  1. Remove the rear axle shaft. For additional information, REFER to REAR DRIVE AXLE/DIFFERENTIAL - FORD 8.8-INCH RING GEAR or REAR DRIVE AXLE/DIFFERENTIAL - FORD 9.75-INCH RING GEAR .
  2. Using a suitable driver, remove the wheel speed sensor ring from the axle shaft and discard the ring.
Fig 2: Removing Wheel Speed Sensor Ring From Axle Shaft And Discard Ring Using Suitable Driver
G07958238Courtesy of FORD MOTOR CO.
