Steering Wheel Rotation Sensor: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Align the arrow on the inner ring of the sensor to the notch on the sensor body.

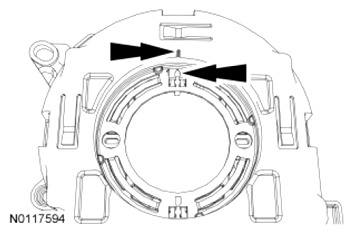

Fig 1: Aligning Arrow On Inner Ring Of Sensor To Notch On Sensor Body
Courtesy of FORD MOTOR CO.
Position the sensor on the Steering Column Control Module (SCCM).
Install the clockspring. For additional information, REFER to SUPPLEMENTAL RESTRAINT SYSTEM .
