Seat Position Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

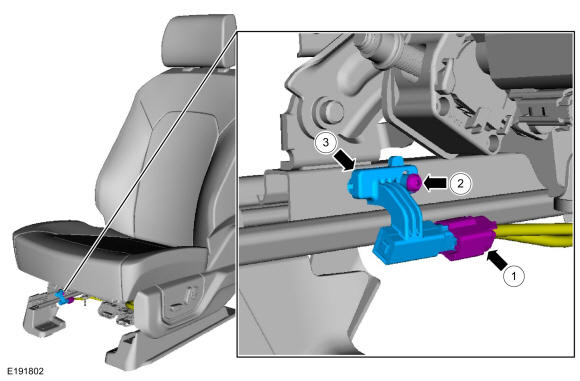

NOTE: LH power seat shown in illustration, others similar.

1.
1. 1.

  Disconnect the electrical connector.
1. 2.

  Remove the screw.
  Torque

  : 8 lb.in (.9 Nm)
1. 3.

  Remove the seat position sensor.

Courtesy of FORD MOTOR COMPANY
