Passenger Airbag: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The following procedure prescribes critical repair steps required for correct supplemental restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the supplemental restraint system and increases the risk of serious personal injury or death in a crash.
NOTE: Typical passenger airbag shown in illustration.

  1. 1.

    Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

  1. 2.

    Remove the instrument panel upper section. Refer to: Instrument Panel Upper Section .

  1. 3.

    Remove the screws and the LH inner demister duct.
GFD43552Courtesy of FORD MOTOR COMPANY

  1. 4.

    Remove the screws and the RH demister duct.
GFD43553Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the screws and the air conditioning duct.
GFD43554Courtesy of FORD MOTOR COMPANY

  1. 6.

    Remove the screws and brackets.
GFD43555Courtesy of FORD MOTOR COMPANY

  1. 7.

    1. 1.

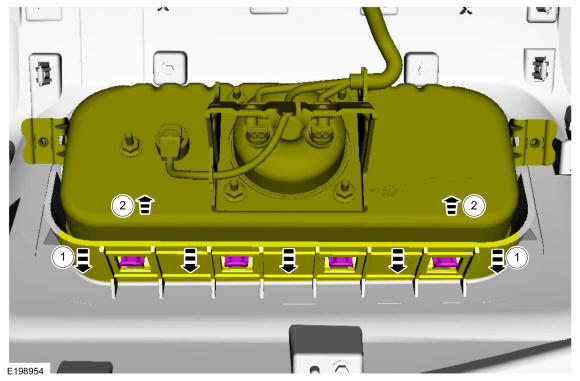

      Pull the passenger airbag deployment chute away from the passenger airbag.

    1. 2.

      Rotate the passenger airbag out of the deployment chute and disengage the 4 passenger airbag retainers.
GFD43556Courtesy of FORD MOTOR COMPANY

  1. 8.

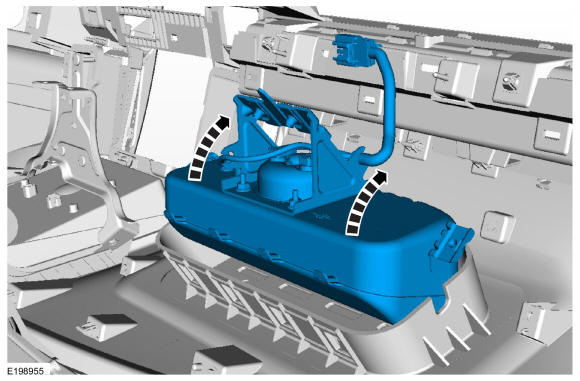

    Continue to rotate the passenger airbag and remove it from the deployment chute.
GFD43557Courtesy of FORD MOTOR COMPANY
