Occupant Classification System (OCS) Sensor - Vehicles Without: Multi-Contour Seats: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: To prevent system failure, carry out the OCS reset when a front passenger seat cushion is disassembled, a new trim cover is installed or an OCS service kit is installed. Use a scan tool to carry out the OCS reset command.

NOTE: The cushion heater mat on a front outboard passenger seat is not serviced separately. If a new cushion heater mat is needed on the front passenger seat, install an OCS service kit equipped with a heater mat. Failure to follow this instruction may result in incorrect operation of the OCS.

NOTE: OCS components (seat cushion foam pad, bladder with OCSM) are calibrated to each other and are serviced as an assembly. The OCS components are not to be installed separately. If a new OCS, OCS component or seat cushion foam pad are needed, a new OCS service kit (seat cushion foam pad, bladder with OCSM) must be installed as an assembly.

NOTE: Seat backrest blower motor without snorkel shown in illustration, unless otherwise called out.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: If equipped with a power seat, raise the seat to its highest point of travel.

Remove the front passenger seat. Refer to: Front Seat .

2.
1. 1.

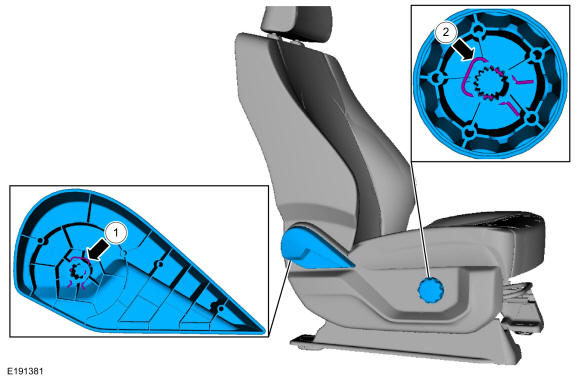

  Remove the clip and the recline handle, if equipped.
1. 2.

  Remove the clip and the lumbar handle, if equipped.

GFD43548

Courtesy of FORD MOTOR COMPANY

3.

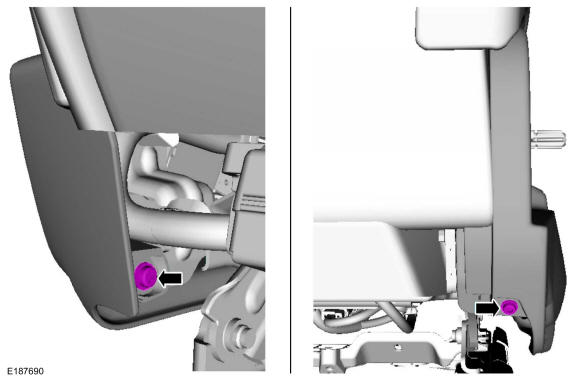

Remove the cushion side shield screws.

GFD43540

Courtesy of FORD MOTOR COMPANY

4.

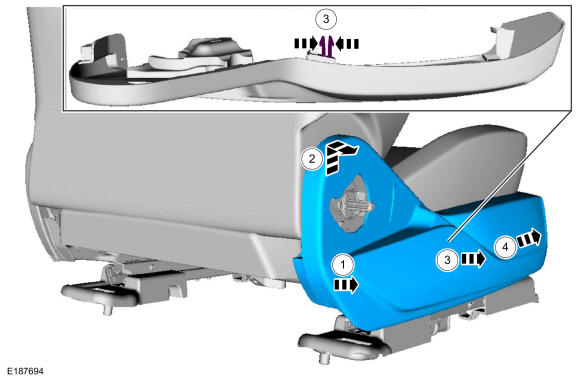

1. 1.

  Pull the rear of the cushion side shield out.
1. 2.

  Firmly grasp the cushion side shield, lift up and out, separating the cushion side shield from the recliner bracket.
1. 3.

  If equipped with a manual seat track, from underneath, squeeze the retainers together and pull out on the cushion side shield.
1. 4.

  Slide the cushion side shield forward and for a manual seat track, remove the cushion side shield.

GFD43549

Courtesy of FORD MOTOR COMPANY

5.

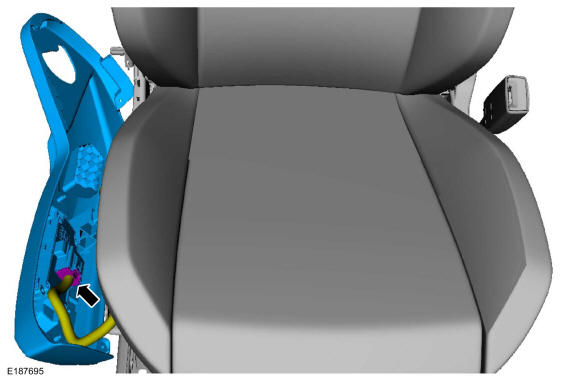

If equipped with a power seat track, disconnect the seat control switch electrical connector and remove the cushion side shield.

GFD43550

Courtesy of FORD MOTOR COMPANY

6.

Detach the electrical connector retainers and position the wire harnesses aside.

GFD43542

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Seat backrest blower motor with snorkel shown in illustration.
1. 1.

  Detach the backrest cover straps.
1. 2.

  If equipped, route the backrest cover straps through the backrest blower motor snorkel.
1. 3.

  Position the backrest cover upward.

GFD42934

Courtesy of FORD MOTOR COMPANY

8.

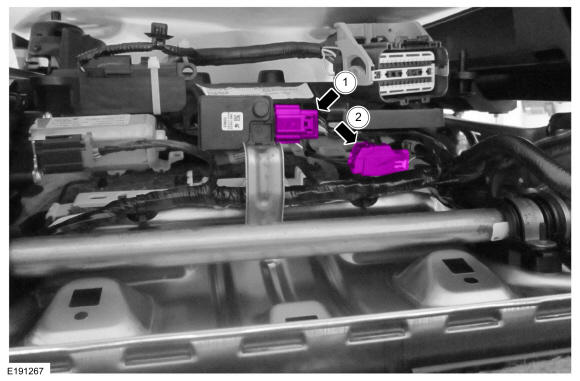

1. 1.

  Disconnect the OCS sensor.
1. 2.

  Disconnect the cushion heater mat electrical connector, if equipped.

GFD43551

Courtesy of FORD MOTOR COMPANY

9.

Detach the cushion cover J-clips and position the cushion cover aside.

GFD43035

Courtesy of FORD MOTOR COMPANY

10.

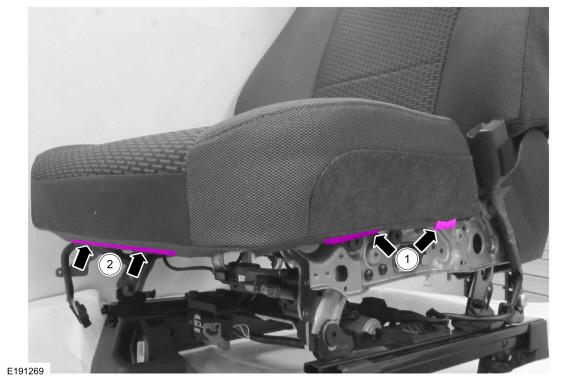

1. 1.

  On both sides, detach the cushion cover J-clips.
1. 2.

  Detach the cushion cover J-clip.

GFD43543

Courtesy of FORD MOTOR COMPANY

11.

Detach the cushion heater mat J-clip, if equipped.

GFD43038

Courtesy of FORD MOTOR COMPANY

12.

NOTE: Passenger seat with multi-contour option shown in illustration, without similar.

NOTE: When equipped with an OCS service kit, the OCS is adhered to the bottom of the front seat cushion foam. This requires the cushion cover, foam and OCS to be positioned aside as an assembly.

Lift the cushion foam. If the cushion foam and OCS are adhered together, then the OCS is a service kit. If nothing is adhered together, then the OCS is OE (original equipment).

GFD43039

Courtesy of FORD MOTOR COMPANY

13.

If equipped with OE OCS remove the cushion foam and cover as an assembly.

GFD43040

Courtesy of FORD MOTOR COMPANY

14.

NOTE: Typical OE OCS shown in illustration, service kit similar.
1. 1.

  Remove the OCS sensor bracket screw.
  Torque

  : 44 lb.in (5 Nm)
1. 2.

  Remove the OCS pin-type retainers.

GFD43042

Courtesy of FORD MOTOR COMPANY

15.

NOTE: Note the location of the OCS hose and heater mat pigtail as it passes through the seat cushion support for proper installation.

Route out the OCS hose, sensor, sensor bracket and heated seat cushion mat wiring pigtail (if equipped) from between the seat cushion support wires and remove the OCS.

GFD43043

Courtesy of FORD MOTOR COMPANY

16.

NOTE: This step is only necessary when installing a new OCS.

NOTE: Follow the unique instructions or graphic for this step in the installation.

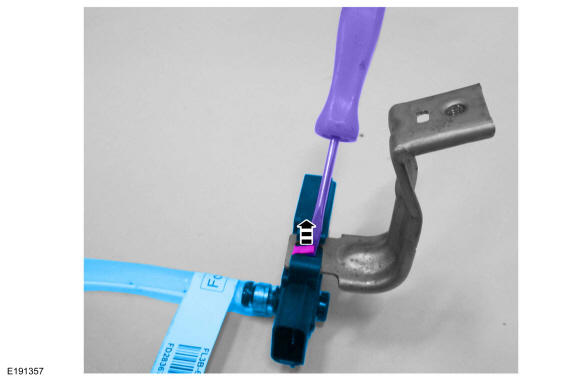

Bend the tab up and slide the OCS sensor off the bracket.

GFD43546

Courtesy of FORD MOTOR COMPANY

17.

NOTE: This step is only necessary when installing a new OCS.

Position the rear portion of the seat cushion cover from the foam.

GFD43048

Courtesy of FORD MOTOR COMPANY

18.

NOTE: Use care when separating the seat cushion from the hook-and-arrow or the hook may be torn from the seat cushion foam pad.

NOTE: This step is only necessary when installing a new OCS.

Remove the seat cushion cover.
1. 1.

  Invert the seat cushion cover.
1. 2.

  Release the hook-and-arrows.

GFD43049

Courtesy of FORD MOTOR COMPANY
