Section 1520 (Supplemental Restraint System - Description And Operation, Diagnosis And Testing, DTC And Symptom Charts)
>>
Description And Operation
>>
Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - System Operation and Component Description
>>

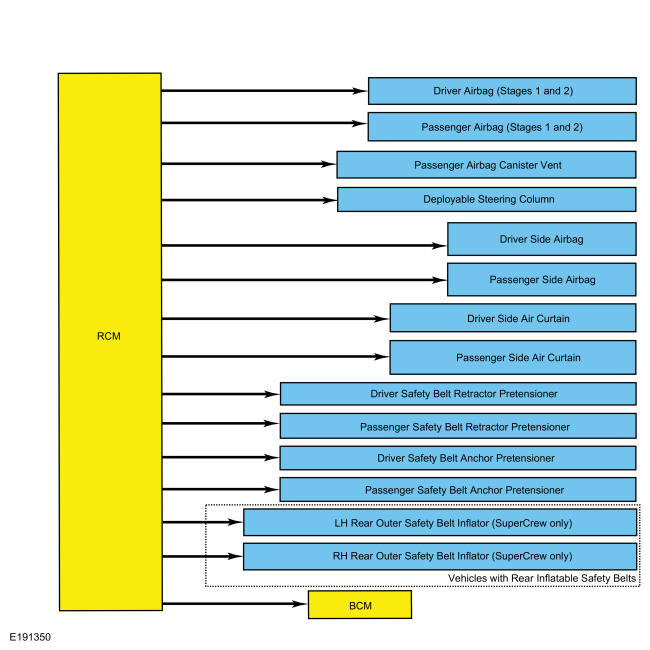

System Diagram - Supplemental Restraint System (SRS)

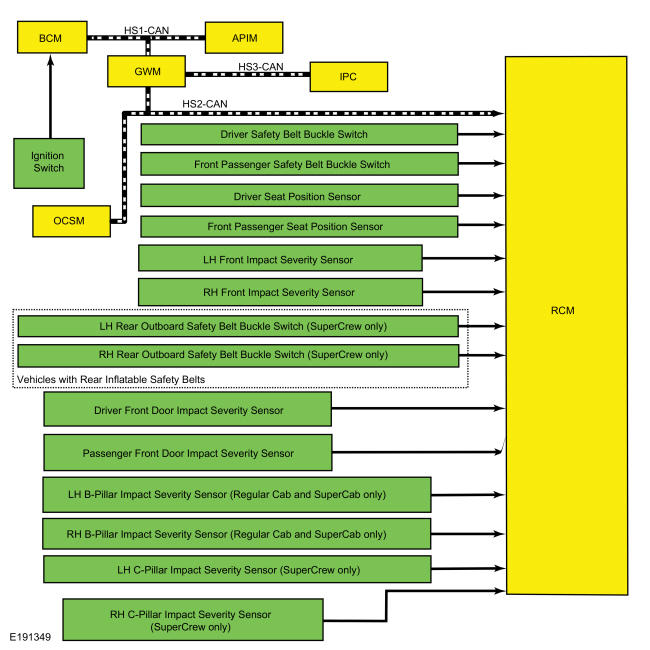

System Diagram - Supplemental Restraint System (SRS)
WARNING:
This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
