Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Component Location
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

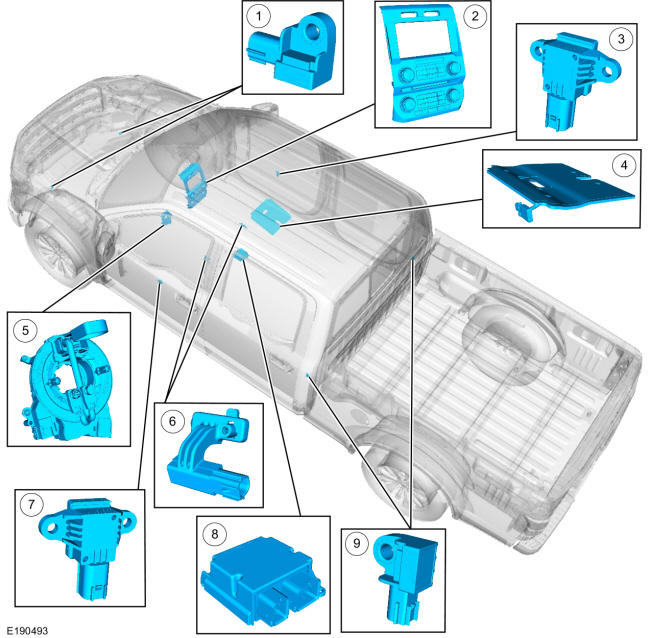

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
LH and RH front impact severity sensors |
| 2 |
FCIM (includes PAD indicator) |
| 3 |
Passenger front door side impact sensor |
| 4 |
OCSM (includes OCS sensor and gel-filled bladder) |
| 5 |
Clockspring |
| 6 |
Seat position sensors |
| 7 |
Driver front door side impact sensor |
| 8 |
RCM |
| 9 |
LH and RH B-pillar side impact sensors (SuperCab) / LH and RH C-pillar side impact sensors (SuperCrew) |

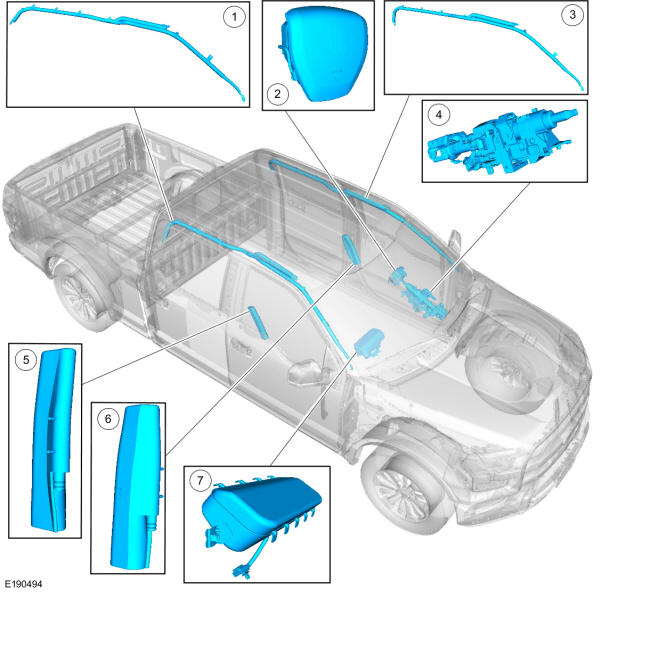

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
RH side air curtain |
| 2 |
Driver airbag |
| 3 |
LH side air curtain |
| 4 |
Deployable steering column |
| 5 |
Passenger side airbag |
| 6 |
Driver side airbag |
| 7 |
Passenger airbag (includes canister vent) |

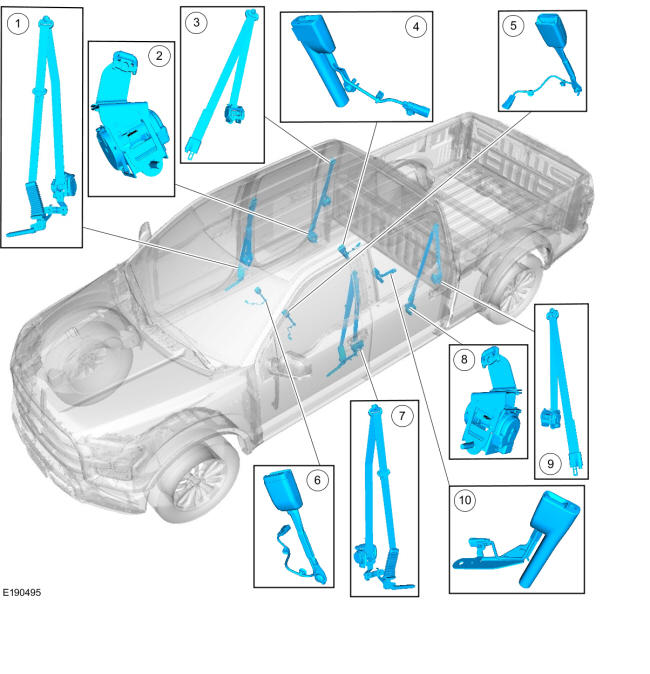

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Front passenger safety belt retractor (includes retractor pretensioner and anchor pretensioner) (CrewCab shown in illustration, other body styles similar) |
| 2 |
RH rear outer safety belt lower retractor (SuperCrew only, if equipped with inflatable safety belts) |
| 3 |
RH rear outer safety belt upper retractor (SuperCrew only, if equipped with inflatable safety belts) |
| 4 |
RH rear outer safety belt buckle assembly (SuperCrew only, if equipped with inflatable safety belts) (includes safety belt buckle, buckle switch and safety belt inflator) |
| 5 |
Driver safety belt buckle (includes buckle switch) |
| 6 |
Front passenger safety belt buckle (includes buckle switch) |
| 7 |
Driver safety belt retractor (includes retractor pretensioner and anchor pretensioner) (CrewCab shown in illustration, other body styles similar) |
| 8 |
LH rear outer safety belt lower retractor (SuperCrew only, if equipped with inflatable safety belts) |
| 9 |
LH rear outer safety belt upper retractor (SuperCrew only, if equipped with inflatable safety belts) |
| 10 |
LH rear outer safety belt buckle assembly (SuperCrew only, if equipped with inflatable safety belts) (includes safety belt buckle, buckle switch and safety belt inflator) |
