Brake Vacuum Pump: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

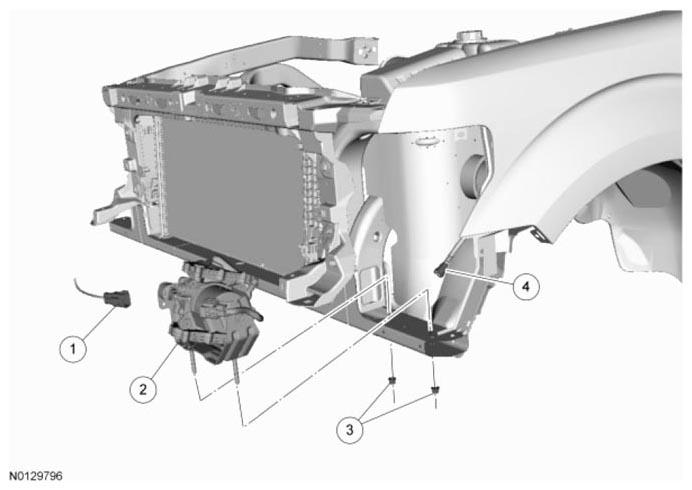

| Item |
Part Number |
Description |
| 1 |
- |
Brake vacuum pump electrical connector (part of 12A581) |
| 2 |
2A451 |
Brake vacuum pump |
| 3 |
W520112 |
Brake vacuum pump nut (2 required) |
| 4 |
9C490 |
Vacuum supply hose |
