Brake Booster Vacuum Sensor
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

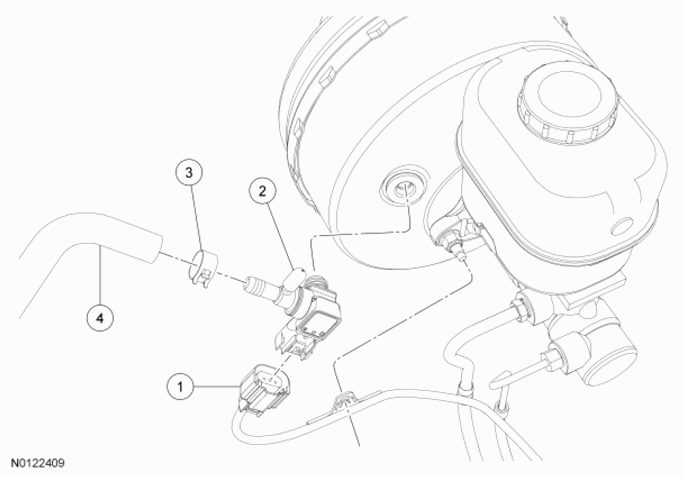

Rear Wheel Drive (RWD) shown in illustration, Four-Wheel Drive (4WD) similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Vacuum sensor electrical connector (part of 12A581) |
| 2 | 2365 | Brake booster vacuum sensor |
| 3 | - | Hose clamp (part of 9C490) |
| 4 | - | Vacuum supply hose (part of 9C490) |
- Relieve the vacuum in the brake booster by pressing and releasing the brake pedal a minimum of 5 times with the engine not running.
- Disconnect the vacuum supply hose from the brake booster vacuum sensor.
- If equipped, disconnect the Four-Wheel Drive (4WD) vacuum reservoir supply hose from the brake booster vacuum sensor.
- Disconnect the vacuum sensor electrical connector and remove the vacuum sensor.
- To install, reverse the removal procedure.
NOTE:
To allow proper drainage of any moisture, the vacuum sensor must be installed in the same position and orientation as removed.
