Pinpoint Test QA: Unable to Activate Self-Test/Network Communication Error: Introduction
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 Lincoln Navigator, 2015 Lincoln MKZ, 2015 Lincoln MKX, 2015 Lincoln MKT, and 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- unable to communicate with powertrain control module (PCM)
- unable to activate the PCM self-test
- incorrect self-test procedure
- harness circuits: ISP-R, PCMRC, PWRGND and VPWR

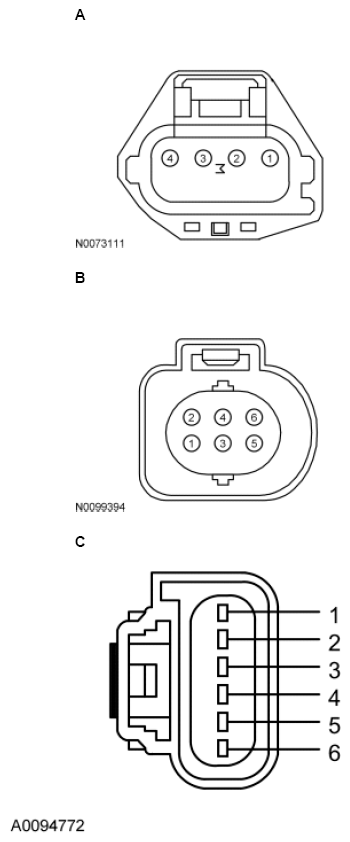

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series, Explorer GTDI 3.5L, F-Series Super Duty 6.8L, Flex GTDI 3.5L, MKS 3.5L, MKT 3.5L, Motorhome/Stripped Chassis/Step Van, Taurus GTDI 3.5L |
A | 3 2 |
ETCRTN ETCREF |
| Escape/Kuga 1.6L, Fiesta 1.6L, Fusion 1.6L, Transit Connect 1.6L |
B | 2 6 |
ETCRTN ETCREF |
| Fiesta 1.0L, Focus 1.0L, Fusion 1.5L |
B | 3 1 |
ETCRTN ETCREF |
| All other vehicles | C | 4 5 |
ETCRTN ETCREF |
Powertrain Control Module (PCM) Connector
For PCM connector views or reference values, refer to REFERENCE VALUES .
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series 6.8L, F-650/F-750, F-Series Super Duty, Motorhome/Stripped Chassis/Step Van |
190-PIN | B69, B70 B67, B68 B38 B42 |
PWRGND VPWR PCMRC ISP-R |
| E-Series 5.4L | 190-PIN | B22, B50, B69, B70 B30, B67, B68 B38 B42 |
PWRGND VPWR PCMRC ISP-R |
| Edge 3.5L, F-150 TiVCT 3.5L, F-150 5.0L, Mustang 3.7L, Mustang 5.0L |
198 PIN | B100, B102, B103, B5 B97, B99 B20 B64 |
PWRGND VPWR PCMRC ISP-R |
| Escape/Kuga 2.5L, Explorer 3.7L, Explorer TiVCT 3.5L, Flex TiVCT 3.5L, Fusion 2.5L, MKS 3.7L, MKT 3.7L, MKX, MKZ 3.7L, Taurus TiVCT 3.5L, Taurus 3.7L, Transit 3.7L, Transit Connect 2.5L |
190-PIN | B50, B69, B70 B67, B68 B38 B42 |
PWRGND VPWR PCMRC ISP-R |
| Explorer 2.0L | 154 PIN | B1, B2, B4 B5, B6 B27 B15 |
PWRGND VPWR PCMRC ISP-R |
| Fiesta GTDI 1.6L, Fiesta 1.0L, Focus 1.0L |
198 PIN | B96, B97, B99 B101, B102, B103 B58 B48 |
PWRGND VPWR PCMRC ISP-R |
| Fiesta TiVCT 1.6L | 128 PIN | B35, B36, B47, B48 B11, B12, E13, E37 B1 B8 |
PWRGND VPWR PCMRC ISP-R |
| All other vehicles | 198 PIN | B96, B97, B98, B99 B101, B102, B103 B58 B48 |
PWRGND VPWR PCMRC ISP-R |
