Pinpoint Test JF: Integrated Ignition Coil On Plug Coils A Through J Failure: Introduction: Notes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 Lincoln Navigator, 2015 Lincoln MKZ, 2015 Lincoln MKX, 2015 Lincoln MKT, and 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
There is additional information available on this procedure. Refer to the Service Tips tab and select the appropriate test listed under the Job Aids title.
For 2 wire coil harness connectors, select the PCM Ignition Coil Driver Test.
For 3 wire coil harness connectors, select the Driver On Coil Ignition Test.
This pinpoint test is intended to diagnose the following:
- ignition coils (12029)
- ignition coil harness
- PCM (12A650)

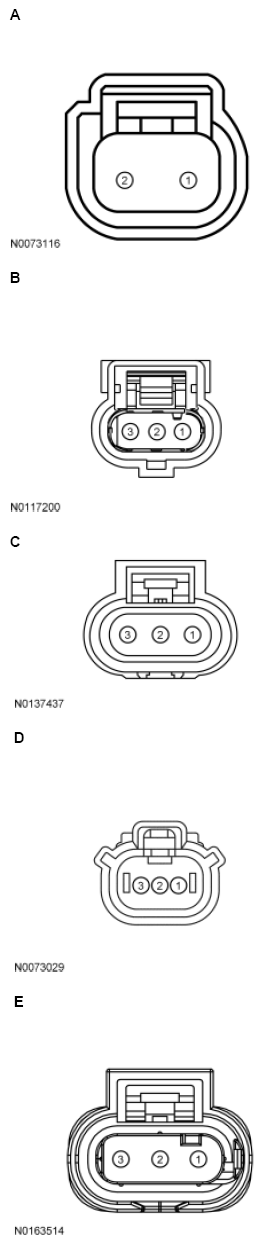

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series, F-Series Super Duty 6.8L, Motorhome/Stripped Chassis/Step Van |
A | 2 1 |
COP VPWR |
| Edge 2.0L, Edge 2.7L, Escape/Kuga 2.0L, Explorer 2.0L, F-150 2.7L, Focus 2.0L, Fusion 2.0L, MKC, MKT 2.0L, MKZ 2.0L, Mustang 2.3L, Taurus 2.0L |
B | 1 2 3 |
COP GND VPWR |
| Escape/Kuga 1.6L, Fiesta, Fusion 1.5L, Fusion 1.6L, Transit Connect 1.6L |
C | 1 2 3 |
COP GND VPWR |
| Escape/Kuga 2.5L, Fusion 2.5L, Transit Connect 2.5L |
A | 1 2 |
COP VPWR |
| Expedition, Explorer GTDI 3.5L, F-150 GTDI 3.5L, Flex GTDI 3.5L, MKS 3.5L, MKT 3.5L, Navigator, Taurus GTDI 3.5L, Transit 3.5L |
D | 2 1 3 |
COP GND VPWR |
| F-Series Super Duty 6.2L | D | 3 1 |
COP VPWR |
| Focus 1.0L | E | 1 2 3 |
COP GND VPWR |
| All other vehicles | D | 1 3 |
COP VPWR |
