Pinpoint Test HP: High Pressure Fuel Delivery System: Introduction: Notes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 Lincoln Navigator, 2015 Lincoln MKZ, 2015 Lincoln MKX, 2015 Lincoln MKT, and 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not apply battery voltage across the fuel injection pump circuits. Damage to the fuel volume regulator solenoid may result.
This pinpoint test is intended to diagnose the following:
- fuel injection pump (9D376)
- harness circuits: FVR and FVRRTN
- PCM (12A650)

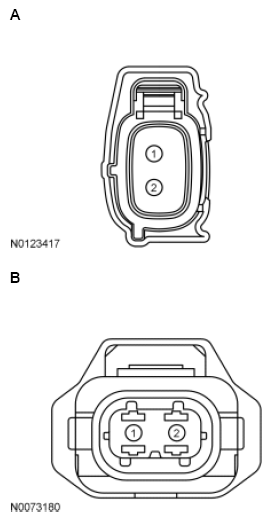

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Edge 2.7L, Expedition, F-150, Focus GDI 2.0L, Navigator, Transit |
A | 2 1 |
FVRRTN FVR |
| Fiesta | B | 2 1 |
FVRRTN FVR |
| All other vehicles | B | 1 2 |
FVRRTN FVR |
