Pinpoint Test DR: Camshaft Position (CMP) Sensor: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 Lincoln Navigator, 2015 Lincoln MKZ, 2015 Lincoln MKX, 2015 Lincoln MKT, and 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

CMP sensor (6B288 or 12K073)
harness circuits: CMP, SIGRTN, VBPWR or VREF
PCM (12A650)

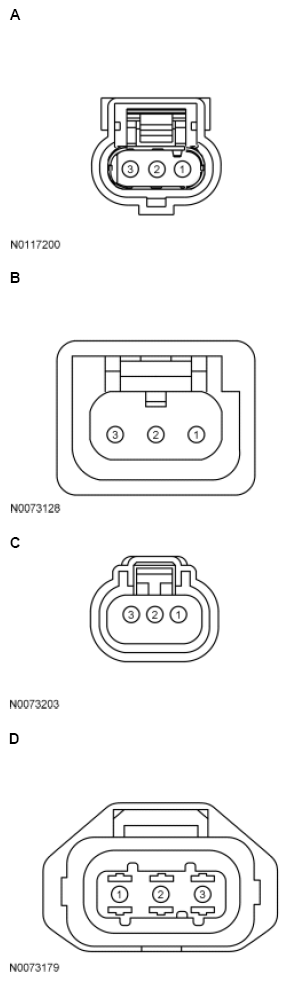

Fig 1: Identifying Camshaft Position Bank 1 Sensor 1 (CMP11) Sensor Connector (1 Of 2)
Courtesy of FORD MOTOR CO.

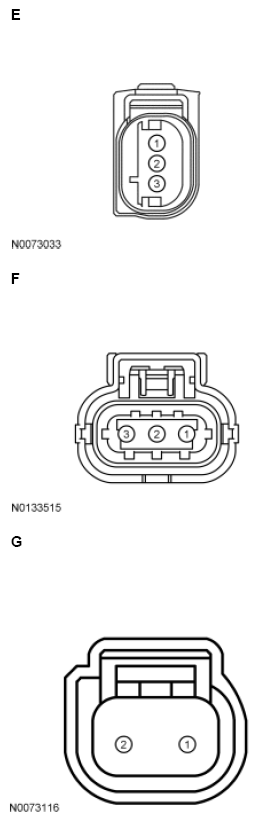

Fig 2: Identifying Camshaft Position Bank 1 Sensor 1 (CMP11) Sensor Connector (2 Of 2)

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Edge 2.7L, Edge 3.5L, Expedition, Explorer GTDI 3.5L, F-150 GTDI 3.5L, F-150 2.7L, Flex GTDI 3.5L, MKS 3.5L, MKT 3.5L, Mustang 3.7L, Navigator, Taurus GTDI 3.5L, Transit 3.5L	A	3 2 1	VBPWR SIGRTN CMP11
Edge 2.0L, Escape/Kuga 2.0L, Explorer 2.0L, Focus 2.0L, Fusion 2.0L, MKC, MKT 2.0L, MKZ 2.0L, Mustang 2.3L, Taurus 2.0L	B	1 2 3	VREF SIGRTN CMP11
Escape/Kuga 2.5L, Fusion 2.5L, Transit Connect 2.5L	C	1 3 2	VBPWR SIGRTN CMP11
Escape/Kuga 1.6L, Fiesta GTDI 1.6L, Fusion 1.5L, Fusion 1.6L	D	3 1 2	VREF SIGRTN CMP11
F-150 5.0L, Mustang 5.0L	E	1 3 2	VBPWR SIGRTN CMP11
F-Series Super Duty 6.2L	E	3 2 1	VBPWR SIGRTN CMP11
Fiesta TiVCT 1.6L, Focus 1.0L	A	1 3 2	VREF SIGRTN CMP11
Fiesta 1.0L	F	1 3 2	VREF SIGRTN CMP11
Transit Connect 1.6L	F	3 1 2	VREF SIGRTN CMP11
All other vehicles	G	1 2	SIGRTN CMP11

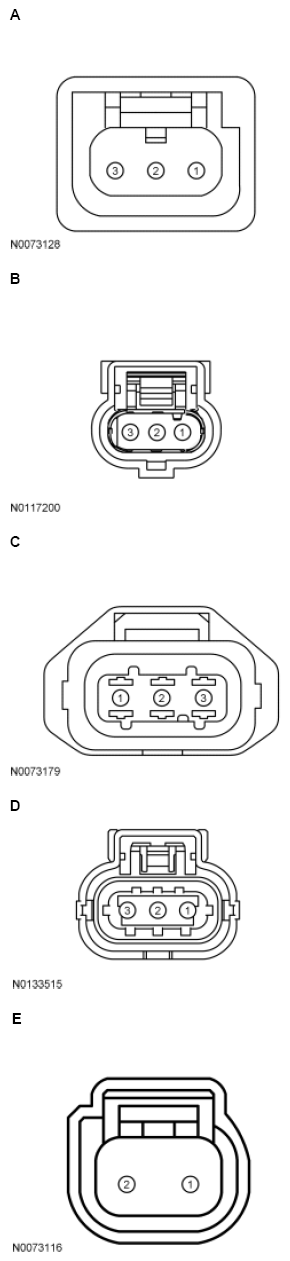

Fig 3: Identifying Camshaft Position Bank 1 Sensor 2 (CMP12) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Escape/Kuga 2.0L, Edge 2.0L, Explorer 2.0L, Focus 2.0L, Fusion 2.0L, MKC, MKT 2.0L, MKZ 2.0L, Mustang 2.3L, Taurus 2.0L	A	1 2 3	VREF SIGRTN CMP12
Edge 2.7L, Expedition, F-150 GTDI 3.5L, F-150 2.7L, Navigator, Transit 3.5L	B	3 2 1	VBPWR SIGRTN CMP12
Escape/Kuga 1.6L, Fiesta GTDI 1.6L, Fusion 1.5L, Fusion 1.6L	C	3 1 2	VREF SIGRTN CMP12
Fiesta TiVCT 1.6L, Focus 1.0L	B	1 3 2	VREF SIGRTN CMP12
Fiesta 1.0L	D	1 3 2	VREF SIGRTN CMP12
Transit Connect	D	3 1 2	VREF SIGRTN CMP12
All other vehicles	E	1 2	SIGRTN CMP12

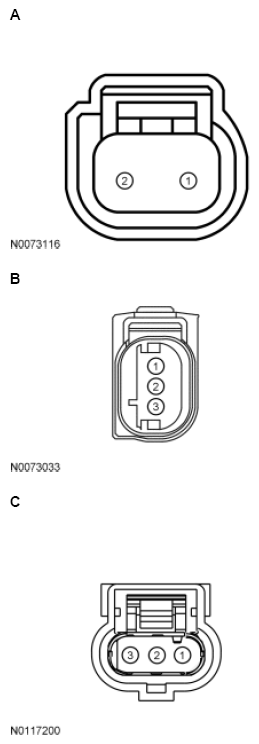

Fig 4: Identifying Camshaft Position Bank 2 Sensor 1 (CMP21) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Explorer 3.7L, Explorer TiVCT 3.5L, Flex TiVCT 3.5L, MKS 3.7L, MKT 3.7L, MKX, MKZ, Taurus TiVCT 3.5L, Taurus 3.7L, Transit 3.7L	A	1 2	SIGRTN CMP21
F-150 5.0L, Mustang 5.0L	B	1 3 2	VBPWR SIGRTN CMP21
F-Series Super Duty	B	3 2 1	VBPWR SIGRTN CMP21
All other vehicles	C	3 2 1	VBPWR SIGRTN CMP21

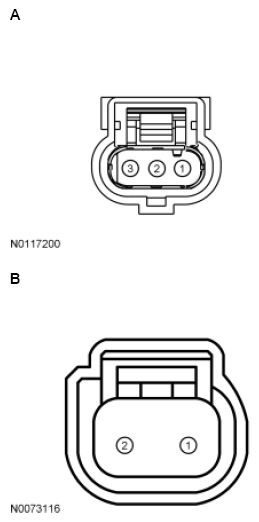

Fig 5: Identifying Camshaft Position Bank 2 Sensor 2 (CMP22) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Edge 2.7L, Expedition, F-150 GTDI 3.5L, F-150 2.7L, Navigator, Transit 3.5L	A	3 2 1	VBPWR SIGRTN CMP22
All other vehicles	B	1 2	SIGRTN CMP22
