Pinpoint Test DM: Manifold Pressure Sensors: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 Lincoln Navigator, 2015 Lincoln MKZ, 2015 Lincoln MKX, 2015 Lincoln MKT, and 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

manifold absolute pressure (MAP) sensor (9F479)
manifold absolute pressure (MAP)/charge air cooler temperature (CACT) sensor (9F479)
manifold absolute pressure and temperature (MAPT) sensor (9F479)
turbocharger boost pressure (TCBP) sensor (9F479)
turbocharger boost pressure (TCBP)/charge air cooler temperature (CACT) sensor (9F479)
turbocharger inlet pressure and temperature (TCIPT) sensor (9F479)
harness circuits: MAP, TCBP, TCIP, SIGRTN, and VREF
PCM (12A650)

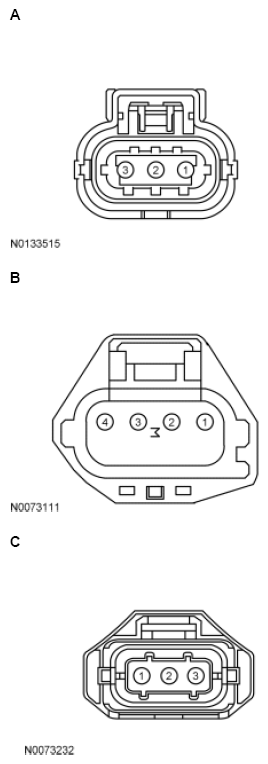

Fig 1: Identifying Manifold Absolute Pressure (MAP) Sensor Connector
Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Escape/Kuga 1.6L, Escape/Kuga 2.0L, Explorer, Fiesta, Focus, MKC, MKT, Taurus, Transit Connect 1.6L	A	1 2 3	MAP SIGRTN VREF
Fusion 2.0L, MKZ	C	3 2 1	MAP SIGRTN VREF
All other vehicles	B	1 4 2	MAP SIGRTN VREF

Fig 2: Identifying Manifold Absolute Pressure/Charge Air Cooler Temperature (MAP/CACT) Sensor Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
4	MAP (Manifold Absolute Pressure)
1	SIGRTN (Signal Return)
3	VREF (Reference Voltage)

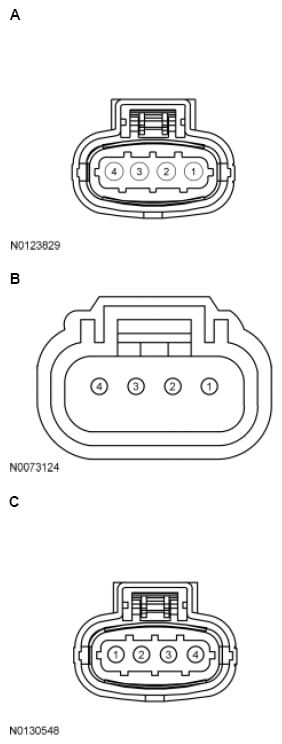

Fig 3: Identifying Manifold Absolute Pressure Temperature (MAPT) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Edge 3.5L, F-150 3.5L, Mustang	A	1 4 2	MAP SIGRTN VREF
All other vehicles	B	4 1 3	MAP SIGRTN VREF

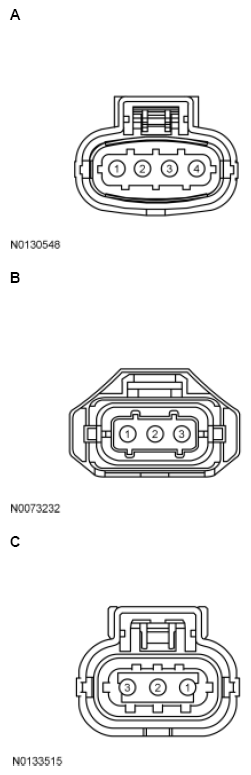

Fig 4: Identifying Turbocharger Boost Pressure (TCBP) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
MKC, Fiesta 1.0L	A	4 1 3	TCBP SIGRTN VREF
Edge 2.0L, Fusion 1.5L	B	3 2 1	TCBP SIGRTN VREF
Mustang	C	1 2 3	TCBP SIGRTN VREF

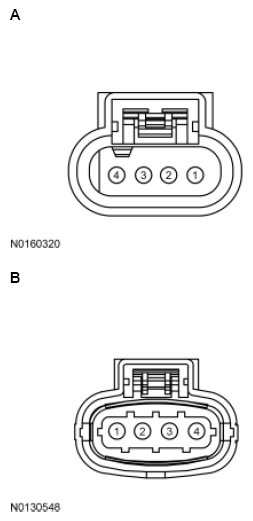

Fig 5: Identifying Turbocharger Boost Pressure/Charge Air Cooler Temperature (TCBP/CACT) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Escape/Kuga, Explorer 2.0L, Focus, MKT 2.0L	A	4 1 3	TCBP SIGRTN VREF
Expedition, Navigator	B	4 1 3	TCBP SIGRTN VREF
Fiesta, Fusion, MKC, MKZ, Taurus 2.0L, Transit Connect	C	4 1 3	TCBP SIGRTN VREF
All other vehicles	B	1 4 2	TCBP SIGRTN VREF

Fig 6: Identifying Turbocharger Intake Pressure And Temperature (TCIPT) Sensor Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
4	TCIP (Turbocharger Intake Pressure)
1	SIGRTN (Signal Return)
3	VREF (Reference Voltage)
