Pinpoint Test DK: Accelerator Pedal Position (APP) Sensor: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 Lincoln Navigator, 2015 Lincoln MKZ, 2015 Lincoln MKX, 2015 Lincoln MKT, and 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: After clearing an APP sensor diagnostic trouble code (DTC) to verify a repair or an intermittent concern, apply the accelerator pedal before carrying out the self-test. Take 10 seconds to carry out a full sweep of the accelerator pedal from fully released to fully applied and back to fully released.

This pinpoint test is intended to diagnose the following:

APP sensor (9F836)
harness circuits: APP1, APP2, APPRTN1, APPRTN2, APPVREF1, APPVREF2, VPWR and GND
PCM (12A650)

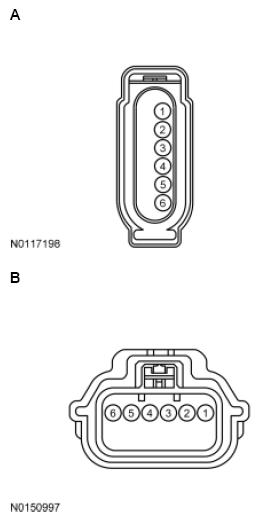

Fig 1: Identifying Accelerator Pedal Position (APP) Sensor Connector
Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Fiesta	A	4 6 2 5 3 1	GND VPWR APP2 APP1 APPRTN2 APPVREF2
All other vehicles	B	5 2 4 6 3 1	APP2 APP1 APPRTN2 APPVREF2 APPRTN1 APPVREF1

Fig 2: Identifying Instrument Panel Cluster (IPC) Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
31	APPVREF2 (Accelerator Pedal Position Reference Voltage 2)
13	APPRTN2 (Accelerator Pedal Position Return 2)
14	APP2 (Accelerator Pedal Position 2)
