Pinpoint Test DI: Direct Fuel Injection Fuel Injector: Introduction: Notes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 Lincoln Navigator, 2015 Lincoln MKZ, 2015 Lincoln MKX, 2015 Lincoln MKT, and 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not apply battery voltage across the fuel injector circuits. Permanent damage to the fuel injector may result.
This pinpoint test is intended to diagnose the following:
- fuel injectors (9F593)
- harness circuits: INJ and INJRTN
- PCM (12A650)

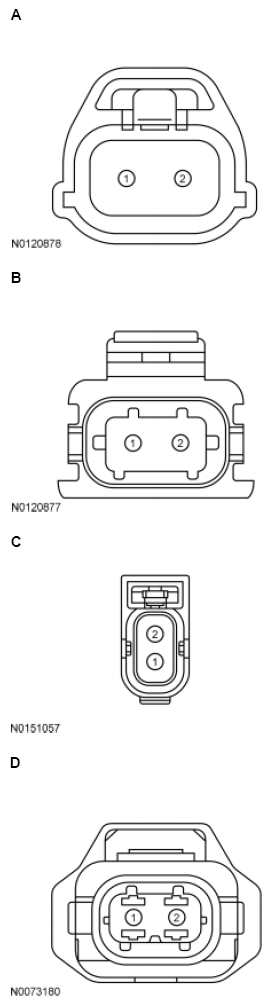

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Edge 2.7L, F-150, Focus GDI 2.0L, Focus 1.0L, Transit |
A | 2 1 |
INJRTN INJ |
| Escape/Kuga, Fiesta GTDI 1.6L, Fusion 2.0L, Fusion 1.6L, MKZ, Transit Connect |
B | 2 1 |
INJRTN INJ |
| Fiesta 1.0L, Fusion 1.5L |
C | 2 1 |
INJRTN INJ |
| All other vehicles | D | 2 1 |
INJRTN INJ |
