Pinpoint Test DG: Knock Sensor (KS): Introduction: Notes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 Lincoln Navigator, 2015 Lincoln MKZ, 2015 Lincoln MKX, 2015 Lincoln MKT, and 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- KS1 and KS2 (12A699)
- harness circuits: KS1+, KS1-, KS2+, and KS2-
- PCM (12A650)

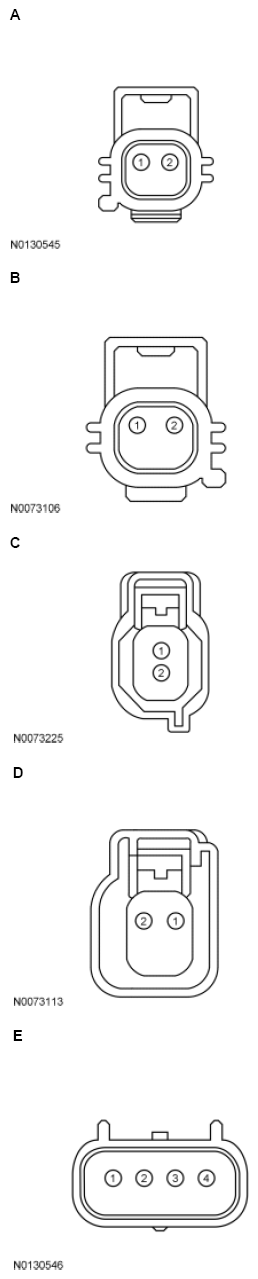

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series, Escape/Kuga 1.6L, Transit Connect 1.6L |
A | 2 1 |
KS1+ KS1- |
| Edge 2.0L, Escape/Kuga 2.0L, Escape/Kuga 2.5L, Explorer 2.0L, Focus 2.0L, Fusion 2.0L, Fusion 2.5L, MKC, MKT 2.0L, MKZ 2.0L, Mustang 2.3L, Taurus 2.0L, Transit Connect 2.5L |
B | 2 1 |
KS1+ KS1- |
| Edge 2.7L, F-150 2.7L, F-150 5.0L, F-650/F-750, F-Series Super Duty, Motorhome/Stripped Chassis/Step Van, Mustang 5.0L |
C | 1 2 |
KS1+ KS1- |
| Fiesta 1.0L, Focus 1.0L |
D | 1 2 |
KS1+ KS1- |
| Fiesta GTDI 1.6L, Fusion 1.5L, Fusion 1.6L |
A | 1 2 |
KS1+ KS1- |
| All other vehicles | E | 1 2 |
KS1+ KS1- |

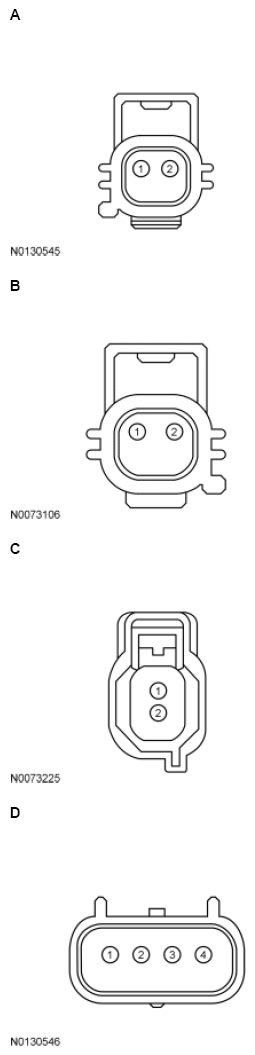

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Escape/Kuga 1.6L, Transit Connect |
A | 2 1 |
KS2+ KS2- |
| Edge 2.0L, Escape/Kuga 2.0L, Explorer 2.0L, Focus, Fusion 2.0L, MKC, MKT 2.0L, MKZ 2.0L, Mustang 2.3L, Taurus 2.0L |
B | 2 1 |
KS2+ KS2- |
| Edge 2.7L, F-150 2.7L, F-150 5.0L, F-650/F-750, F-Series Super Duty 6.2L, Motorhome/Stripped Chassis/Step Van, Mustang 5.0L |
C | 1 2 |
KS2+ KS2- |
| F-Series Super Duty 6.8L | D | 1 2 |
KS2+ KS2- |
| Fiesta, Fusion 1.5L, Fusion 1.6L |
A | 1 2 |
KS2+ KS2- |
| All other vehicles | D | 3 4 |
KS2+ KS2- |
