Side Impact Sensor - Second Row

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RH side shown in illustration, LH similar.

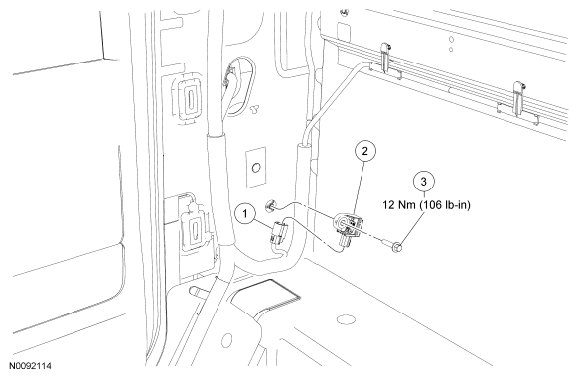

Fig 1: Side Impact Sensor, Electrical Connector And Bolt With Torque Specifications
G06174161Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Electrical connector (part of 14A005)
2 14B345 Side impact sensor
3 W505256 Side impact sensor bolt
WARNING: If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
  1. Depower the SRS. For additional information, Refer to Supplemental Restraint System (SRS) Depowering and Repowering  .
  2. SuperCab: remove the B-pillar trim panel.

    SuperCrew:  remove the C-pillar trim panel.

    For additional information, refer to the Removal and Installation procedures in INTERIOR TRIM AND ORNAMENTATION .

  3. Disconnect the side impact sensor electrical connector.
    4. WARNING: Always tighten the fasteners of the restraints control module (RCM) and impact sensor (if equipped) to the specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.
    NOTE: Make sure the B- or C-pillar and side impact sensor mating surface is clean and free of foreign material.
  4. Remove the bolt and side impact sensor.
    • To install, tighten to 12 Nm (106 lb-in).
  5. To install, reverse the removal procedure.
  6. Repower the SRS. For additional information, Refer to Supplemental Restraint System (SRS) Depowering and Repowering  .
