Side Air Bag Module: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

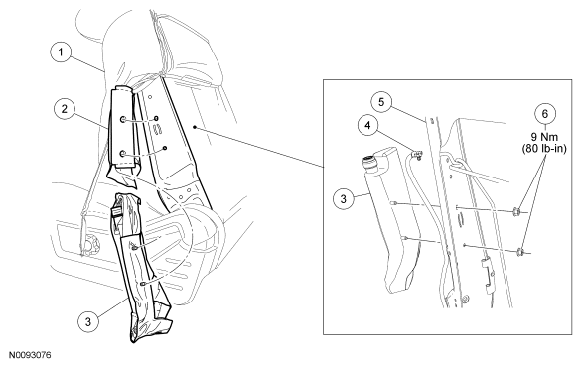

Driver seat shown in illustration, passenger similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 64417 | Backrest cover |
| 2 | - | Deployment chute (part of 64417) |
| 3 | 611D10 | Side air bag module |
| 4 | - | Electrical connector (part of 14K155) |
| 5 | 61018 | Seat backrest frame |
| 6 | W520111 | Side air bag module nuts (2 required) |
