Passenger Air Bag Deactivation (PAD) Indicator
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

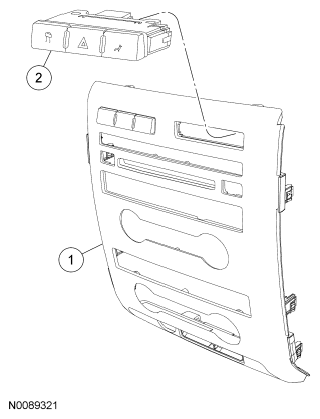

Fig 1: Identifying Passenger Air Bag Deactivation (PAD) Indicator And Instrument Panel Center Finish Panel
| Item | Part Number | Description |
|---|---|---|
| 1 | 04302 | Instrument panel center finish panel |
| 2 | 13350 | Passenger Air Bag Deactivation (PAD) indicator |
NOTE:
The Passenger Air Bag Deactivation (PAD) indicator is part of the hazard/traction control switch.
- Turn the ignition OFF and wait at least one minute.
- Remove the instrument panel center finish panel. For additional information, REFER to INSTRUMENT PANEL AND CONSOLE .
- Disconnect the PAD indicator electrical connector.
- Press the 2 tabs inward and remove the PAD indicator.
- To install, reverse the removal procedure.
NOTE:
Ignition must be OFF when disconnecting the PAD indicator electrical connector. Otherwise, a DTC will be set in the Restraints Control Module (RCM) memory and must be cleared before releasing the vehicle.
