Supplemental Restraint System (SRS) Deactivation and Reactivation: Reactivation
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
- Remove RCM fuse 31 (10A) from the SJB.
- Disconnect the battery ground cable and wait at least one minute.
- Connect the LH side safety canopy module electrical connector.
- For regular cab, install the LH side B-pillar trim panel.
- For SuperCab and SuperCrew, install the LH side C-pillar trim panel.
For additional information, REFER to INTERIOR TRIM AND ORNAMENTATION .
- Connect the RH side safety canopy module electrical connector.
- For regular cab, install the RH side B-pillar trim panel.
- For SuperCab and SuperCrew, install the RH side C-pillar trim panel.
For additional information, REFER to INTERIOR TRIM AND ORNAMENTATION .
- Under the driver seat, connect inline electrical connector C339, slide and engage the locking clip.
- Under the driver seat, connect inline electrical connector C3051, slide and engage the locking clip.
- Connect the 2 passenger air bag module electrical connectors.

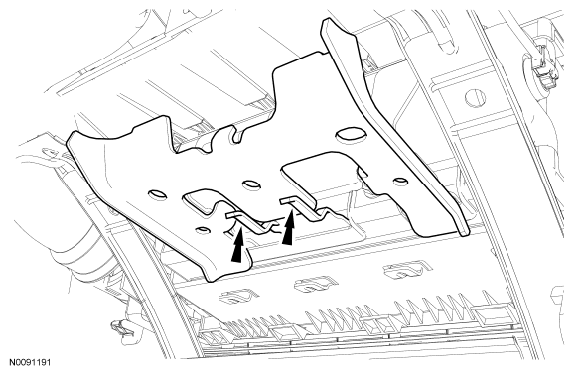

- Position the passenger air bag module so that the tabs are oriented as shown in illustration.
- Install the 3 passenger air bag module bolts.
- Tighten to 8 Nm (71 lb-in).
- Install the driver air bag module. Refer to Driver Air Bag Module .
- Repower the SRS. For additional information, Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
