Front Disc Brake: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire. For additional information, REFER to WHEELS AND TIRES .

NOTE: Do not allow the caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.
Discard the specified component. Follow local disposal regulations.

Relocate and support the component.
- To install, tighten the 2 new bolts to 250 Nm (184 lb-ft).

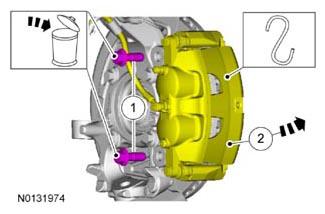

  Fig 1: Identifying Brake Caliper Guide Pin Bolts And Brake Caliper
  Courtesy of FORD MOTOR CO.
Fig 2: Removing Brake Disc
Courtesy of FORD MOTOR CO.
