Front Brake Caliper Anchor Plate: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake pads. For additional information, refer to BRAKE PADS  .
  2. Discard the specified component. Follow local disposal regulations.

    Apply the specified chemical with a spray can

    Clean the specified component with the specified material

    • To install, tighten the new bolts to 250 Nm (184 lb-ft).

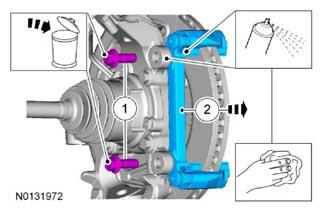

      Fig 1: Cleaning Brake Caliper Anchor Plate With Specified Chemical
      G07958102Courtesy of FORD MOTOR CO.
