Parking Brake Shoes: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Using specified grease, lubricate the parking brake shoes where the shoe contacts the actuator lever and the support bracket.

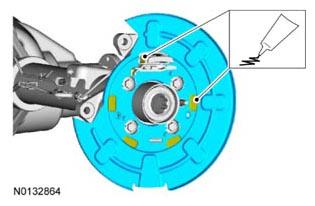

Fig 1: Lubricating Parking Brake Shoes Where Shoe Contacts Actuator Lever And Support Bracket

Courtesy of FORD MOTOR CO.

Apply the substance from the specified tube.

NOTE: Completely retract the parking brake adjusting screw before installation.

To install, reverse the removal procedure.
Adjust the parking brake shoe. For additional information, refer to PARKING BRAKE SHOE ADJUSTMENT .
Reload the tension on the parking brake cable. For additional information, refer to PARKING BRAKE CABLE TENSION RELEASE .
