Rear Disc Brake: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. For additional information, REFER to WHEELS AND TIRES .

NOTE: Do not allow the caliper assembly to hang from the brake hose or damage to the hose can occur.

Relocate and support the component.
- To install, tighten to 150 Nm (111 lb-ft).

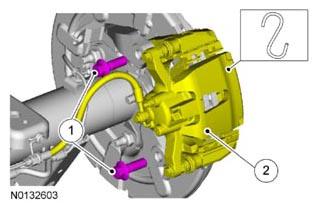

  Fig 1: Identifying Brake Caliper And Bolts
  Courtesy of FORD MOTOR CO.
Fig 2: Removing Brake Disc
Courtesy of FORD MOTOR CO.
