Rear Brake Pads: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing new brake pads, make sure to install all new hardware and specified lubricant supplied with the brake pad kit. Refer to the brake pad instruction sheet when applying lubricant.

NOTE: Protect the caliper pistons and boots when pushing the caliper piston into the caliper piston bores or damage to components may occur.

Fig 1: Pushing Caliper Piston Into Caliper Piston Bores
Courtesy of FORD MOTOR CO.
NOTE: Do not allow grease, oil, brake fluid or other contaminants to contact the pad lining material or damage to components may occur. Do not install contaminated pads.

NOTE: Install all new hardware supplied with the pad kit.

Fig 2: Identifying Brake Pads Bracket
Courtesy of FORD MOTOR CO.
Fig 3: Installing Brake Pads
Courtesy of FORD MOTOR CO.
- Tighten to 33 Nm (24 lb-ft).

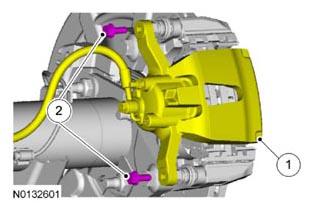

  Fig 4: Identifying Brake Caliper And Bolts
  Courtesy of FORD MOTOR CO.
Fill the master cylinder with clean specified brake fluid.
- Apply brakes several times to verify correct brake operation.
Install the wheel and tire. For additional information, REFER to WHEELS AND TIRES .
- Apply brakes several times to verify correct brake operation.
