Rear Brake Flexible Hose - Inner: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, REFER to JACKING & LIFTING .

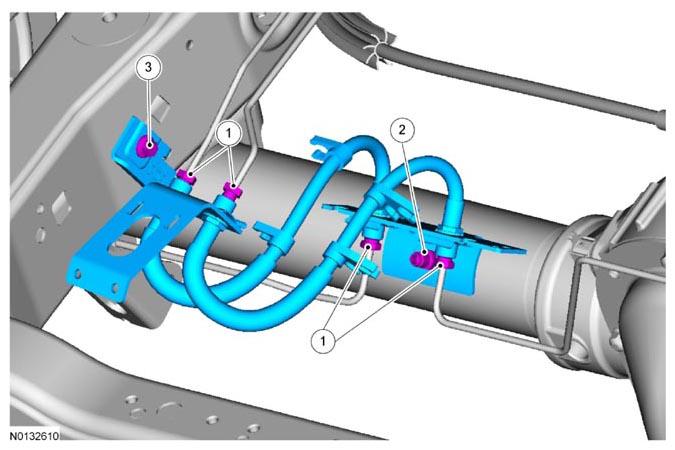

Fig 1: Identifying Inner Brake Flexible Hoses, Bracket And Retainers
Courtesy of FORD MOTOR CO.
1. To install, tighten to 17 Nm (150 lb-in).
2. To install, tighten to 18 Nm (159 lb-in).
3. To install, tighten to 17 Nm (150 lb-in).

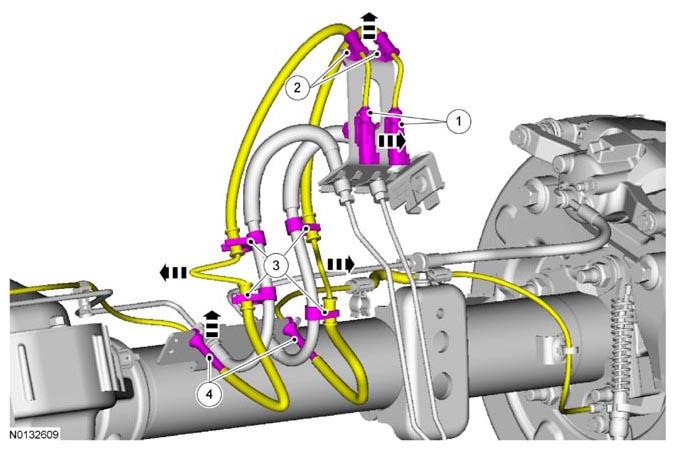

  Fig 2: Identifying Inner Brake Flexible Hoses, Bracket And Bolts
  Courtesy of FORD MOTOR CO.
