Connector End View (C4479) - PARKING BRAKE ACTUATOR MOTOR RH
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C4479
Description
PARKING BRAKE ACTUATOR MOTOR RH
Color
Harness
15K857
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CCB19 (GN-BN) |
12 |
CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-) |
|
|
2 |
CCB18 (YE-GY) |
12 |
CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT LOCK (+) |
|

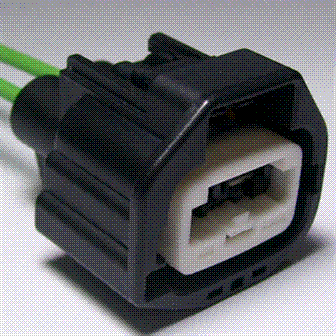

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1417 |
Service Part Number: 3U2Z-14S411-EUAB Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses Motor - Engine Cooling Fan Pump - Fuel (External) Resistor - Fan Dropping Trailer Tow - Vehicle Side |
