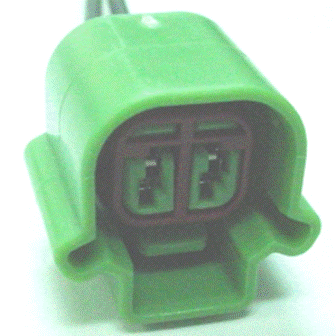

Connector End View (C4359) - ELECTRONIC LOCKING DIFFERENTIAL (ELD) FIELD COIL

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C4359

Description

ELECTRONIC LOCKING DIFFERENTIAL (ELD) FIELD COIL

Color

Harness

14405

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCF31 (BN-VT)	18	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE REAR AXLE E-LOCK
2	GD480 (BK)	20	GROUND - FRAME MIDDLE LEFT

Available Pigtail Kits

Pigtail Kit Part Number

WPT-829

Courtesy of FORD MOTOR COMPANY

Service Part Number:

2U2Z-14S411-BB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Electronic Locking Differential

Lamp - Fog/Driving

Switch - Hood Ajar
