Connector End View (C4098) - TRAILER TOW CONNECTOR
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C4098
Description
TRAILER TOW CONNECTOR
Color
Harness
13A576
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CAT09 (GN) |
14 |
CTRL MOD. - TRAILER TOW # TURN SIGNAL RIGHT (COLOR TO SAE 1239) |
|
|
2 |
CAT06 (YE) |
14 |
CTRL MOD. - TRAILER TOW # TURN SIGNAL LEFT (COLOR TO SAE 1239) |
|
|
3 |
CAT11 (BN) |
14 |
CTRL MOD. - TRAILER TOW # PARK LAMPS (COLOR TO SAE 1239) |
|
|
4 |
RAT08 (WH) |
14 |
CTRL MOD. - TRAILER TOW # RETURN (USA ONLY, COLOR TO SAE 1239 EXCEPTION TO PSF) |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-840 |

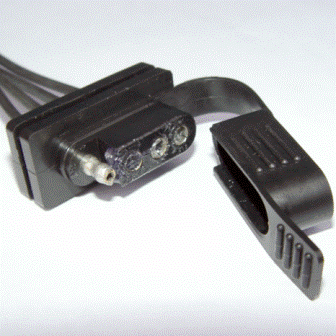

Service Part Number: 5U2Z-14S411-JA Gauge: 12 Pin material: Tin Cavities: 4 Vehicle Uses Trailer Tow - Vehicle Side |
