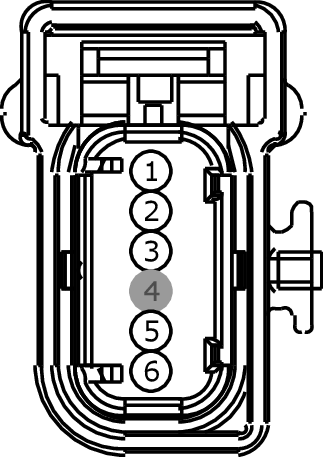

Connector End View (C3738) - SAFETY BELT BUCKLE, PASSENGER
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3738
Description
SAFETY BELT BUCKLE, PASSENGER
Color
Harness
14D230
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VR210 (BU-BN) |
20 |
SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD |
|
|
2 |
LR142 (YE-BU) |
20 |
CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD + |
|
|
3 |
GD901 (BK) |
20 |
Ground |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
CR201 (GN-BU) |
20 |
SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE |
|
|
6 |
GD901 (BK) |
20 |
Ground |
|

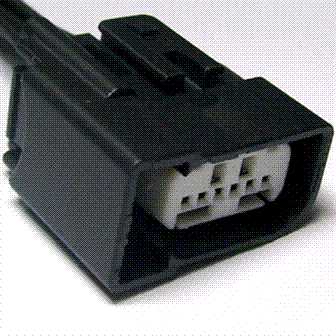

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1329 |
Service Part Number: DU2Z-14S411-EA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses Antenna - Keyless Entry Handle - Decklid Switch - Keyless Entry Switch - Seatbelt |
