Connector End View (C3647) - SAFETY BELT BUCKLE AND INFLATOR, RIGHT REAR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR181 (WH)

22

CTRL MOD. - INFLATABLE SEAT BELT ROW 2 PASSENGER OUTBOARD +

2

RR181 (BU-OG)

22

CTRL MOD. - INFLATABLE SEAT BELT ROW 2 PASSENGER OUTBOARD -

3

CR206 (BN)

22

SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 PASSENGER SIDE OUTBOARD

4

RR137 (BU-GY)

22

CTRL MOD. - SENSOR SEAT TRACK POSITION DRIVER -

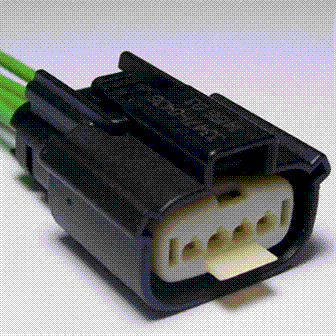

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1427

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-MB

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses

Pretensioner - Seat Belt (Driver)

Pretensioner - Seat Belt (Passenger)

Switch - Seatbelt

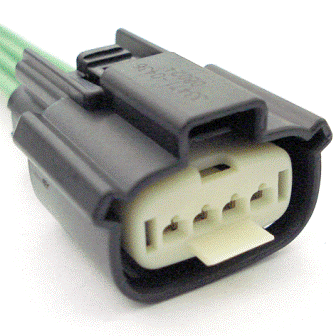

Pigtail Kit Part Number

WPT-940

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-MA

Gauge:

14

Pin material:

Silver

Cavities:

4

Vehicle Uses

Pretensioner - Seat Belt (Passenger)
