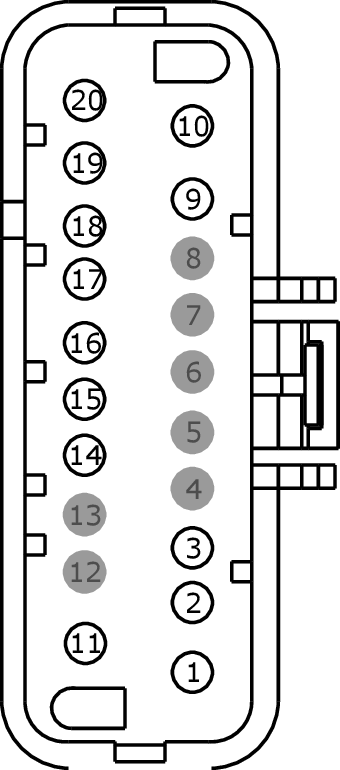

Connector End View (C3388) - SEAT CONTROL SWITCH, PASSENGER SIDE FRONT
Connector: C3388
Description
SEAT CONTROL SWITCH, PASSENGER SIDE FRONT
Color
Harness
14D230
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CPS30 (VT-BN) |
14 |
SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD |
|
|
2 |
CPS19 (GY-VT) |
18 |
SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE |
|
|
3 |
CPS29 (WH-BN) |
14 |
SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
CPS95 (GN-VT) |
20 |
SWITCH - SEAT MULTICONTOUR # MORE (LMR) |
|
|
10 |
GD904 (BK-BU) |
14 |
Ground |
|
|
11 |
CBX05 (VT-RD) |
14 |
POWER - SEAT # POWER SEAT SWITCH |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
CPS24 (GY) |
14 |
SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN |
|
|
15 |
CPS25 (WH-VT) |
14 |
SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP |
|
|
16 |
CPS23 (GN-VT) |
14 |
SWITCH - SEAT ADJUST. DRIVER FORWARD |
|
|
17 |
CPS28 (GN) |
14 |
SWITCH - SEAT ADJUST. DRIVER REARWARD |
|
|
18 |
CPS27 (BU-BN) |
14 |
SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP |
|
|
19 |
CPS26 (YE-BU) |
14 |
SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN |
|
|
20 |
CPS18 (BN-GN) |
18 |
SWITCH - DRIVER LUMBAR PUMP |
without multi-contour |
|
20 |
CPS96 (WH-OG) |
20 |
SWITCH - SEAT MULTICONTOUR # MORE (LMR) |
multi-contour |
