Connector End View (C3384) - MULTI-CONTOUR CONTROL PUMP, RIGHT
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3384
Description
MULTI-CONTOUR CONTROL PUMP, RIGHT
Color
Harness
14D233
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CPT05 (YE) |
20 |
MOTOR FEED |
|
|
2 |
GD904 (BK-BU) |
20 |
Ground |
|
Available Pigtail Kits |
|
|

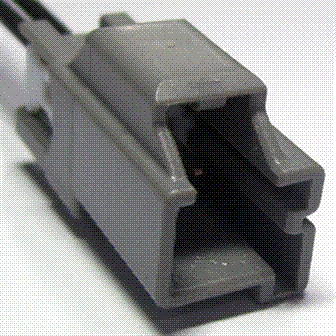

Pigtail Kit Part Number WPT-1078 |
Service Part Number: 3U2Z-14S411-LAB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Connector - Inline Element - Heated Seat Lamp - PRNDL Indicator Speaker - Front Switch - Seat Lumbar |
